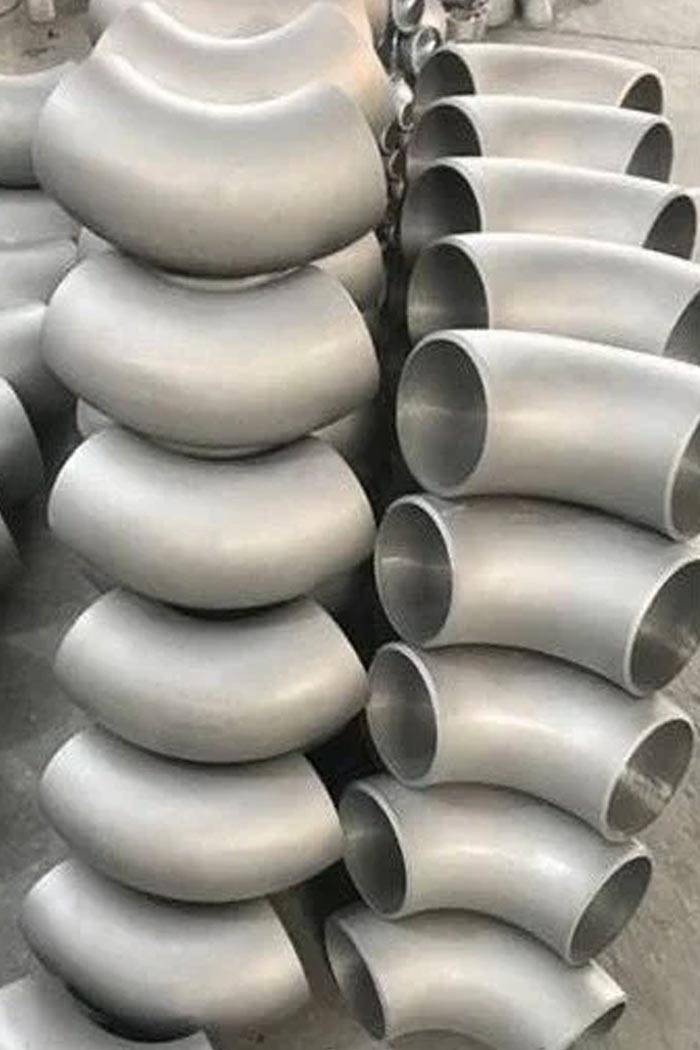

Duplex steel buttweld fittings connect pipes in high-pressure systems and tough environments. These fittings are made from duplex stainless steel a mix of austenite and ferrite. Midland Alloys is a trusted duplex steel buttweld fittings manufacturer, offering a full range that includes stainless duplex butt weld fittings for demanding industries. This blend gives super duplex buttweld fittings high strength, corrosion resistance and long life. They come in different types like elbows, tees, reducers, and caps—each shaped by heat and pressure for a strong, leak-free fit.
Benefits of ASTM A815 duplex Steel buttweld fittings
- Better Strength and Endurance: Duplex steel is less likely to fail than regular stainless steel because of its increased tensile strength.
- Excellent Corrosion Resistance: It resists pitting, crevice, and stress corrosion, even in harsh or salty environments.
- High-Temperature and Pressure Resistance: These fittings handle extreme heat and pressure without losing shape or strength.
- Ease of Fabrication and Welding: They are easy to shape, cut, and weld using standard tools and processes.
- Environmentally Friendly Choice: Duplex steel lasts longer and requires fewer replacements, reducing material waste.
Difference between Duplex Steel Buttweld Fittings vs Other Materials
Duplex steel buttweld fittings have a mixed microstructure of austenite and ferrite, giving them higher strength and better resistance to stress corrosion cracking compared to stainless steel fittings, which are mostly austenitic. While stainless steel fittings provide strong general corrosion resistance but lesser mechanical strength, duplex fittings perform better in severe, chloride-rich situations. Due to their superior properties, duplex fittings are costlier, and used in demanding applications, whereas stainless steel fittings are common in less severe conditions.
Specification of Duplex Steel Buttweld Fitting
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
ASTM A815 / ASME SA815
Forge, Cast, Push, Press, etc.
90 Deg. Elbow, 45 Degree Elbow, LR/SR Elbow, Reducers, Tee, Cross, Bends, U bend, 180 Deg Bend, End Cap, Lap-joint Stub End
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Plain End, Beveled End, Treaded
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Seamless / Welded / Fabricated
Types of Duplex Steel Buttweld Fitting
-
Elbow (90°, 45°, Long Radius, Short Radius)Modifies the pipeline's flow direction at predetermined angles with regulated radii.
-
Tee (Equal Tee, Reducing Tee)Adjusts the size of the main and branch lines to split or combine flow at 90° intersections.
-
A reducer (eccentric or concentric)joins pipes with varying diameters while preserving flow offset or alignment.
-
stub endIn non-permanent piping configurations, the stub end (long or short) connects to lap joint flanges for disassembly.
-
Return Bends (180° bend)Redirects flow by 180 degrees, allowing the pipeline to reverse direction.
-
Cross (Equal Cross, Reducing Cross)Provides multidirectional flow by joining four pipes at right angles.
-
pipe capTo stop flow or pressure, an end cap also known as a pipe cap, seals the pipe's open end.
-
Bend (3D, 5D, Custom Radius)This tool uses predefined or custom radii to gradually change the direction of pipelines.
-
nipplesShort pipe segments called "nipples" (also known as "barrel" or "swage") are used to join two fittings or pipes.
-
Collar / CouplingLinks two pipe sections in a straight run with a secure and leak-free joint.
Contact us today to discuss how Duplex Steel Buttweld Fittings can benefit your application. Whether you need guidance in selecting the right pipes or have specific requirements, our team of experts is here to help you find the optimal solution.
Duplex & Super Duplex Steel Buttweld Fittings Grades We Offer
Duplex Steel Buttweld Fitting Schedule
| NB | OD | SCH XXS | SCH 80S | SCH 5S | SCH 160S | SCH 10S | SCH 40S | |||||||
| mm | in. | mm | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) |
| 10 | 3/8 | 17.1 | – | – | 3.20 | 1.10 | 0.490 | 1.24 | – | – | 1.65 | 0.63 | 2.31 | 0.845 |
| 25 | 1 | 33.4 | 9.09 | 5.45 | 4.55 | 3.24 | 1.30 | 1.65 | 4.24 | 6.35 | 2.77 | 2.09 | 3.38 | 2.50 |
| 150 | 6 | 168.3 | 21.95 | 79.22 | 10.97 | 42.7 | 11.32 | 2.77 | 67.56 | 18.2 | 3.40 | 13.84 | 7.11 | 28.3 |
| 15 | 1/2 | 21.3 | 7.47 | 2.55 | 3.75 | 1.62 | 0.800 | 1.65 | 1.94 | 4.75 | 2.11 | 1.00 | 2.77 | 1.27 |
| 40 | 1 1/2 | 48.3 | 10.16 | 9.54 | 5.08 | 5.41 | 1.91 | 1.65 | 7.25 | 7.14 | 2.77 | 3.11 | 3.68 | 4.05 |
| 32 | 1 1/4 | 42.2 | 9.70 | 7.77 | 4.85 | 4.47 | 1.65 | 1.65 | 5.61 | 6.35 | 2.77 | 2.70 | 3.56 | 3.38 |
| 50 | 2 | 60.3 | 11.07 | 13.44 | 5.54 | 7.48 | 2.40 | 1.65 | 11.1 | 8.74 | 2.77 | 3.93 | 3.91 | 5.44 |
| 600 | 24 | 609.6 | – | – | 30.96 | 442.08 | 82.47 | 5.54 | 808.22 | 59.54 | 6.35 | 94.45 | 17.48 | 255.41 |
| 65 | 2 1/2 | 73.0 | 14.2 | 20.39 | 7.01 | 11.4 | 3.69 | 2.11 | 14.9 | 9.53 | 3.05 | 5.26 | 5.16 | 8.63 |
| 80 | 3 | 88.9 | 15.24 | 27.65 | 7.62 | 15.2 | 4.51 | 2.11 | 21.3 | 11.1 | 3.05 | 6.45 | 5.49 | 11.30 |
| 300 | 12 | 323.9 | 25.40 | 186.97 | 12.7 | 132.0 | 31.25 | 3.96 | 238.76 | 33.32 | 4.57 | 36.00 | 9.52 | 73.88 |
| 3 | 1/8 | 10.3 | – | – | 2.41 | 0.47 | 0.276 | 1.24 | – | – | 1.24 | 0.28 | 1.73 | 0.37 |
| 100 | 4 | 114.3 | 17.12 | 41.03 | 8.56 | 22.3 | 5.84 | 2.11 | 33.54 | 13.49 | 3.05 | 8.36 | 6.02 | 16.07 |
| 125 | 5 | 141.3 | 19.05 | 57.43 | 9.53 | 31.97 | 9.47 | 2.77 | 49.11 | 15.88 | 3.40 | 11.57 | 6.55 | 21.8 |
| 250 | 10 | 273.1 | 25.40 | 155.15 | 12.7 | 96.0 | 22.63 | 3.40 | 172.4 | 28.6 | 4.19 | 27.78 | 9.27 | 60.5 |
| 200 | 8 | 219.1 | 22.23 | 107.8 | 12.7 | 64.6 | 14.79 | 2.77 | 111.2 | 23.0 | 3.76 | 19.96 | 8.18 | 42.6 |
| 350 | 14 | 355.6 | – | – | 19.05 | 158.08 | 34.36 | 3.96 | 281.70 | 35.71 | 4.78 | 41.3 | 11.13 | 94.59 |
| 6 | 1/4 | 13.7 | – | – | 3.02 | 0.80 | 0.390 | 1.24 | – | – | 1.65 | 0.49 | 2.24 | 0.631 |
| 400 | 16 | 406.4 | – | – | 21.41 | 203.33 | 41.56 | 4.19 | 365.11 | 40.46 | 4.78 | 47.29 | 12.7 | 123.30 |
| 20 | 3/4 | 26.7 | 7.82 | 3.63 | 3.91 | 2.20 | 1.03 | 1.65 | 2.89 | 5.54 | 2.11 | 1.28 | 2.87 | 1.68 |
| 500 | 20 | 508.0 | – | – | 26.19 | 311.2 | 59.25 | 4.78 | 564.68 | 49.99 | 5.54 | 68.71 | 15.09 | 183.42 |
| 450 | 18 | 457.2 | – | – | 23.8 | 254.36 | 46.80 | 4.19 | 466.40 | 45.71 | 4.78 | 53.42 | 14.27 | 155.80 |
Duplex Steel Buttweld Fitting Weight Chart
| Pipe Elbow Nominal Size | Pipe Elbow Outside Diameter Y | Wall Thickness T (Pipe Elbow Schedule) | 45 Deg. Elbow LR Centre to Face B | 45 Deg. Elbow LR Weight | 90 Deg. Elbow LR Centre to Face A | 90 Deg. Elbow LR Weight | 90 Deg. Elbow SR Centre to Face A | 90 Deg. Elbow SR Weight | ||
| mm | in | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
How Duplex Steel Buttweld Fitting Are Manufactured
Pipe
Cutting
Forming
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Elbow
Inspection
Analytic
Marking
Packing & Shipping
Applications of duplex 2205 buttweld fittings UNS S31803 S32205
Our duplex 2205 buttweld fittings (UNS S31803/S32205) are trusted across demanding industries. In waste treatment plants, they handle harsh chemicals and sludge without corroding. Chemical processing units use them for high-pressure acid and solvent flow. Breweries use it to withstand pressure changes and cleaning cycles. In petrochemical plants, these fittings carry hot fluids and gases with ease. Cryogenic facilities use our super duplex buttweld fittings for safe handling of liquid gases at extremely low temperatures. They are essential to paper mills because they handle heat, moisture and harsh chemicals. They are used in high-pressure pipelines by gas processing facilities. Even nuclear power plants depend on our fittings for safe and durable cooling and fuel handling systems.
Why choose ANSIB16.9 duplex buttweld pipe fittings
We offer high-quality ANSIB16.9 duplex buttweld pipe fittings built for performance and reliability. We adhere to stringent quality standards, as an ISO 9001 certified manufacturer to make sure every fitting meets the standards. We provide custom lengths, finishes, and coil forms to suit your exact project needs. Our products undergo a series of rigorous tests including hydrostatic testing, PMI, ultrasonic testing, radiographic testing, hardness testing and intergranular corrosion testing to guarantee quality and durability. In accordance with customer requests, we also arrange third-party inspections from reputable organizations including TUV, SGS, BV, DNV, and Lloyd’s Register. With a strong global export network, we guarantee prompt and secure delivery worldwide. Our team is available 24/7 for support, and we offer complete material traceability.
Frequently Asked Questions About Duplex Steel Pipes
Yes, duplex buttweld fittings are made especially to withstand high pressures and temperatures without breaking down or deforming.
The price of duplex steel buttweld fittings varies based on size, grade (such as S31803 or S32205), type (elbow, tee, reducer, etc.), and order volume.
Yes, we provide customized duplex fittings in various dimensions, wall thicknesses, and finishes to match specific project requirements.
