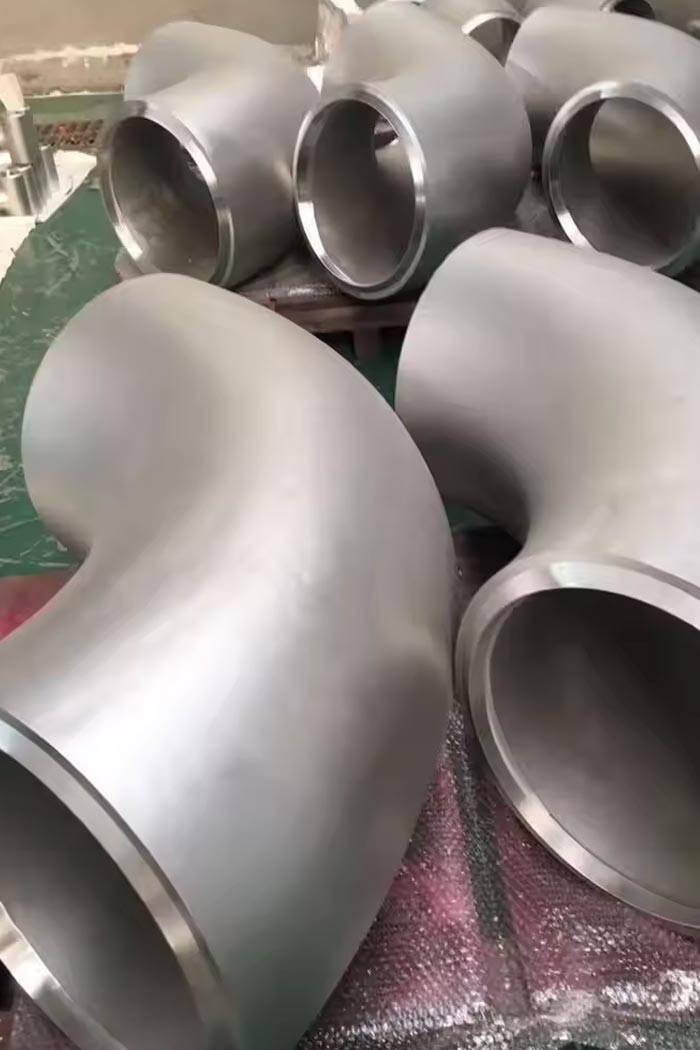

Midland Alloys Inc. is a reputable Indian manufacturer and international supplier of buttweld fittings providing a broad selection of high end pipe fittings to businesses all over the world. High performance Incoloy alloys are used to create our Incoloy Buttweld Fittings which are designed to provide outstanding mechanical durability, high-temperature stability and corrosion resistance. These fittings are perfect for welding piping systems together guaranteeing strong and leak-proof joints. We produce a variety of types, including caps to close line ends, stub ends for lap joint flanges, equal and reducing tees for fluid branching, concentratic and eccentric reducers for pipe diameter transition 90° and 45° elbows for changing pipeline direction and crosses for four way connections.
Benefits of Incoloy Buttweld Fittings ASTM B366
Incoloy Buttweld Fittings ASTM B366 deliver unmatched reliability in extreme service conditions, making them a preferred choice in critical operations.
- Excellent corrosion resistance in acidic, oxidising, and reducing environments
- Superior high-temperature strength, suitable for elevated-temperature processes
- Outstanding mechanical strength with long-term structural stability
- High resistance to oxidation and carburisation
- Suitable for both seamless and welded pipeline systems
- Available in custom schedules, sizes, and end finishes
- Compliant with ASTM B366, ASME SB366, and international quality standards
- Supports efficient flow with smooth inner surfaces to minimise pressure drop
Specification of Incoloy Buttweld Fittings
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
ASTM B366 / ASME SB366
Forge, Cast, Push, Press, etc.
90 Deg. Elbow, 45 Degree Elbow, LR/SR Elbow, Reducers, Tee, Cross, Bends, U bend, 180 Deg Bend, End Cap, Lap-joint Stub End
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Plain End, Beveled End, Treaded
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Seamless / Welded / Fabricated
Types of Incoloy Buttweld Fitting
-

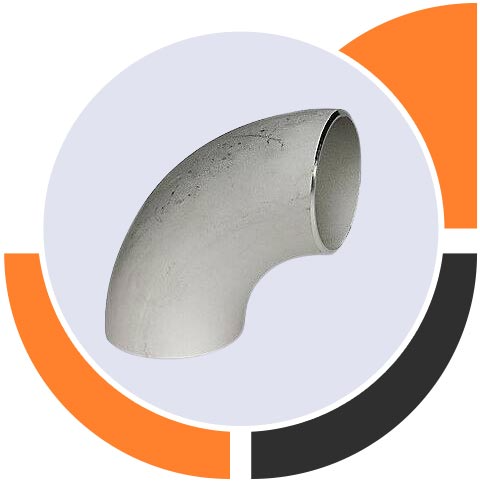

Elbow (90°, 45°, Long Radius, Short Radius)Modifies the pipeline's flow direction at predetermined angles with regulated radii.
-
Tee (Equal Tee, Reducing Tee)Adjusts the size of the main and branch lines to split or combine flow at 90° intersections.
-

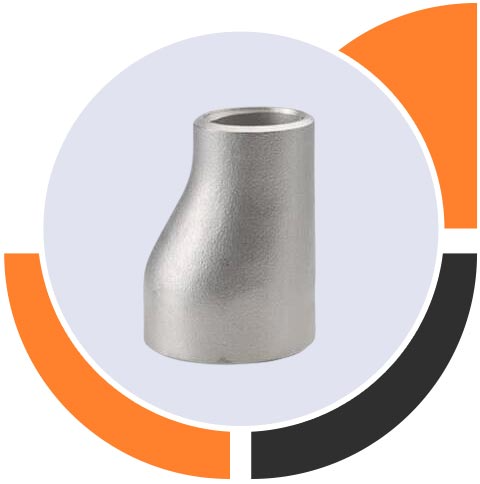

A reducer (eccentric or concentric)joins pipes with varying diameters while preserving flow offset or alignment.
-
stub endIn non-permanent piping configurations, the stub end (long or short) connects to lap joint flanges for disassembly.
-
Return Bends (180° bend)Redirects flow by 180 degrees, allowing the pipeline to reverse direction.
-

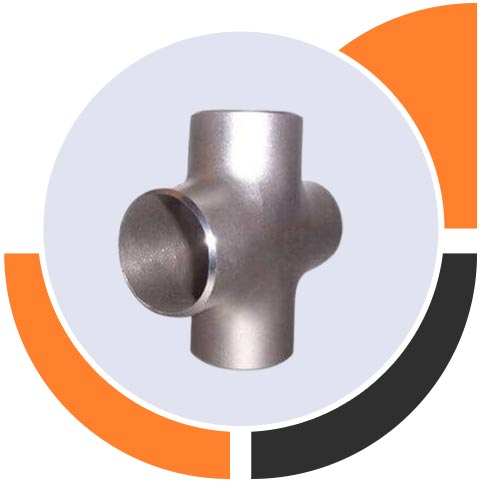

Cross (Equal Cross, Reducing Cross)Provides multidirectional flow by joining four pipes at right angles.
-
pipe capTo stop flow or pressure, an end cap also known as a pipe cap, seals the pipe's open end.
-
Bend (3D, 5D, Custom Radius)This tool uses predefined or custom radii to gradually change the direction of pipelines.
-
nipplesShort pipe segments called "nipples" (also known as "barrel" or "swage") are used to join two fittings or pipes.
-
Collar / CouplingLinks two pipe sections in a straight run with a secure and leak-free joint.
Incoloy Buttweld Fittings Grades We Offer
Incoloy Buttweld Fittings Dimensions Chart
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to Face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Incoloy Buttweld Fittings Manufacturing Standards
| ASME B16.9 ASTM B366 Pipe Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Difference Between Incoloy Buttweld Fittings and Inconel Buttweld Fittings
While both Incoloy and Inconel Buttweld Fittings belong to the nickel-based alloy family, their performance differs based on alloy composition. Because of their higher iron content, Incoloy Buttweld Fittings (like Incoloy 800, 825 or UNS N08800) are better suited for applications requiring resistance to oxidation and stress corrosion cracking at temperatures ranging from moderate to high. On the other hand, Inconel Buttweld Fittings which are made mostly of nickel and chromium, perform better in corrosive and extremely high-temperature conditions, particularly when under pressure. While Inconel works well in high-pressure systems and aggressive thermal cycling, Incoloy variants are frequently utilized in sulfur-rich environments and acidic environments.
How Incoloy Buttweld Fitting Are Manufactured
Pipe
Cutting
Forming
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Elbow
Inspection
Analytic
Marking
Packing & Shipping
Applications of Incoloy Buttweld Fittings ASTM B366
Incoloy Buttweld Fittings play a crucial role in multiple high-demand industries due to their strength and corrosion resistance. In chemical processing plants, they manage aggressive chemicals and fluids. The oil & gas sector employs them in pipelines and offshore rigs for their resistance to sour gas and seawater corrosion. In power generation, especially in boilers and heat exchangers, they handle high temperatures without structural deformation. Refineries and petrochemical units use them for reliable performance in hydrocarbon and sulphur-rich environments. These fittings are also found in water treatment plants, where they endure harsh cleaning agents and continuous operation cycles.
Why Choose Us for DIN 1.4876 Incoloy Buttweld Fittings
Midland Alloys Inc. is a leading Indian manufacturer and exporter of high-quality Incoloy Buttweld Fittings, delivering precision-engineered solutions to global markets. We follow strict ASTM, ASME, and EN standards and operate under ISO 9001:2015-certified systems. Our offerings include complete customisation options such as cut-to-length fittings, specific end preparations, and surface treatments. With a wide network across Europe, the Gulf, Southeast Asia, and Africa, we meet diverse industrial requirements with ease. All fittings undergo in-house testing, with mill test certificates, chemical analysis, and optional third-party inspections. We promise on-time delivery, expert handling of bulk or project-based orders, and long-term quality assurance. All Incoloy Pipe Fittings are stamped as per ASTM B366 / ASME SB366, supplied with MTCs verifying chemical and mechanical properties. Each item is carefully packed, ensuring safe global transit.
FAQs – Incoloy Buttweld Fittings
Yes, seamless fittings offer higher strength and leak resistance for critical applications, while welded are more economical.
Prices vary by grade and size, but Incoloy Buttweld Fittings price per kg generally starts from ₹2,500–₹3,500 depending on alloy type.
Common grades include Incoloy 800, Incoloy 800H, Incoloy 800HT, and Incoloy 825, all available in seamless and welded forms.
Yes. Midland Alloys Inc. offers fabricated Incoloy Buttweld Fittings in special sizes, schedules, and surface finishes.
