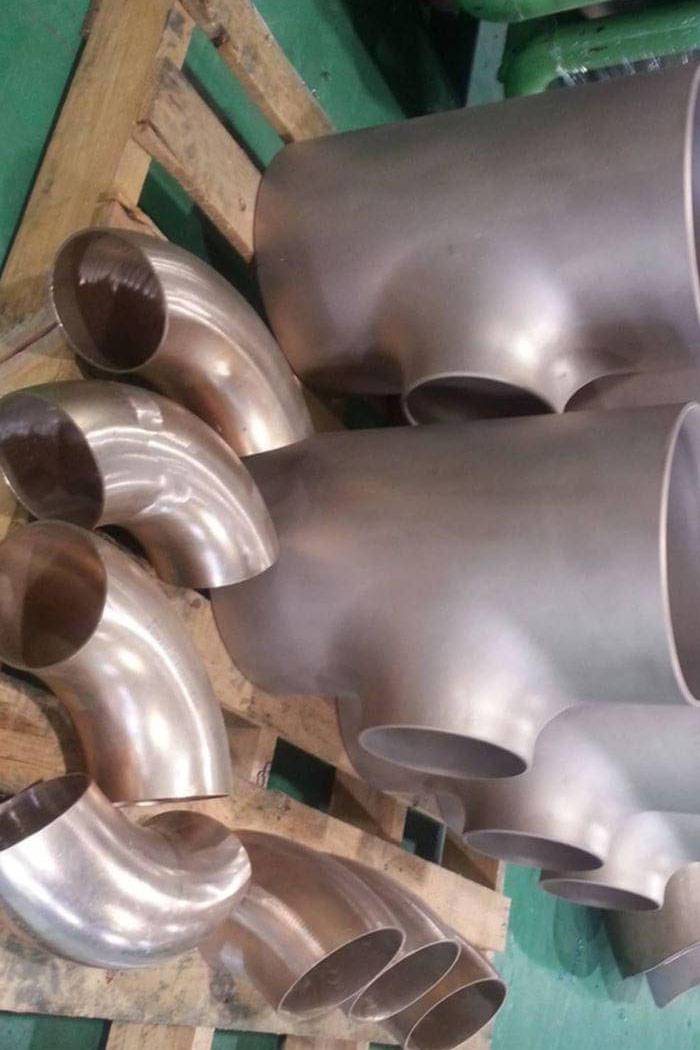

Midland Alloys Inc. is a reputable Indian producer and international supplier of Inconel Alloy Buttweld Fittings providing a wide selection to satisfy various industrial requirements. These fittings are made from nickel based superalloys that combine nickel, chromium and austenitic elements, and they are precisely engineered in accordance with ASTM B366, ASTM SB366, ASTM B564 and ASME SB564 standards. Known for their superior mechanical properties and unmatched resistance to corrosion and high-temperature environments, Inconel Buttweld Fittings ASTM B366 are widely utilised across sectors requiring durable, leak-proof, and high-performance pipe joining solutions.
Benefits of Inconel Alloy Buttweld Fittings
Inconel alloy Buttweld Fittings offer significant advantages for high-demand operations, especially in environments exposed to heat, oxidation, and corrosive media. They are a preferred option for critical infrastructure because of their ability to maintain performance integrity under mechanical and thermal stress.
- Withstand high pressure and thermal stress – Without deformation.
- Excellent chemical resistance – Provides outstanding resistance to acidic and alkaline environments.
- Structural integrity – Maintains performance under extreme temperature fluctuations.
- Leak-proof performance – Supports long-term pipeline reliability.
- Low maintenance – Performs well in corrosive and oxidizing conditions.
- Corrosion protection – Resists pitting, crevice corrosion, and stress corrosion cracking.
- Easy fabrication – Supports smooth fabrication and weldability for complex assemblies.
- Multiple constructions – Available in seamless, ERW, and welded options for various applications.
Specification of Inconel Buttweld Fittings
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
ASTM B366 / ASME SB366
Forge, Cast, Push, Press, etc.
90 Deg. Elbow, 45 Degree Elbow, LR/SR Elbow, Reducers, Tee, Cross, Bends, U bend, 180 Deg Bend, End Cap, Lap-joint Stub End
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Plain End, Beveled End, Treaded
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Seamless / Welded / Fabricated
Types of Inconel Buttweld Fitting
-

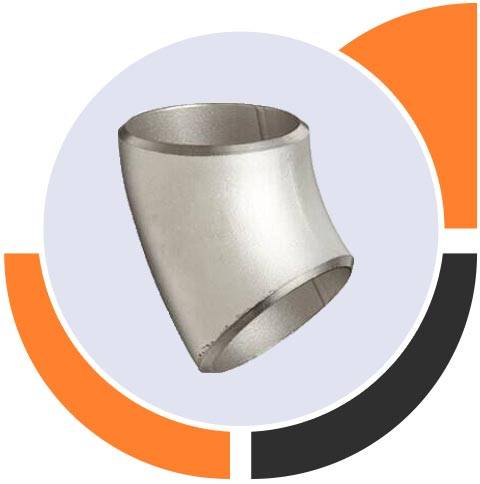

Elbow (90°, 45°, Long Radius, Short Radius)Modifies the pipeline's flow direction at predetermined angles with regulated radii.
-

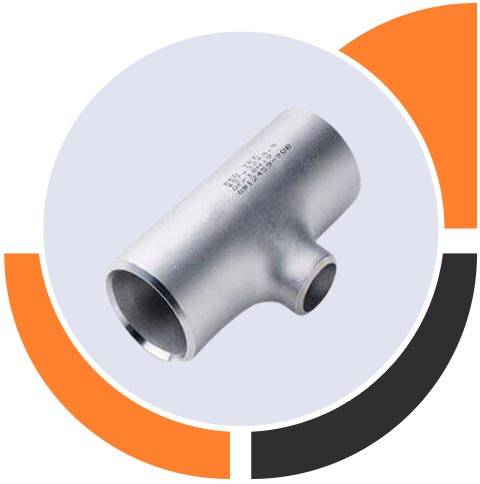

Tee (Equal Tee, Reducing Tee)Adjusts the size of the main and branch lines to split or combine flow at 90° intersections.
-

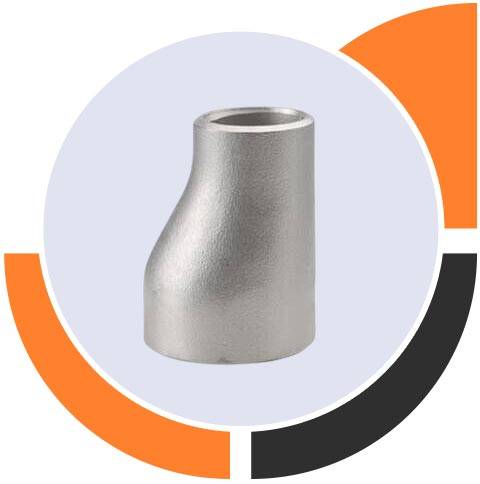

A reducer (eccentric or concentric)joins pipes with varying diameters while preserving flow offset or alignment.
-
stub endIn non-permanent piping configurations, the stub end (long or short) connects to lap joint flanges for disassembly.
-
Return Bends (180° bend)Redirects flow by 180 degrees, allowing the pipeline to reverse direction.
-

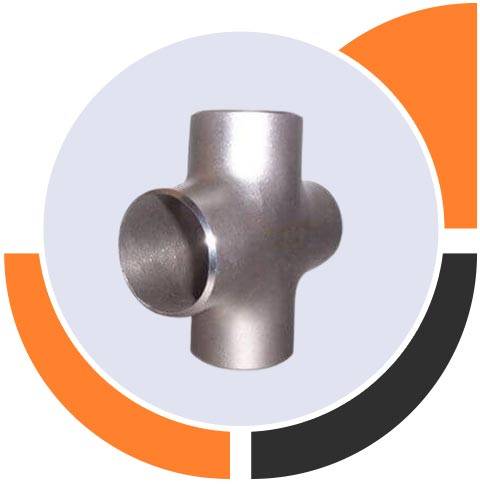

Cross (Equal Cross, Reducing Cross)Provides multidirectional flow by joining four pipes at right angles.
-
pipe capTo stop flow or pressure, an end cap also known as a pipe cap, seals the pipe's open end.
-
Bend (3D, 5D, Custom Radius)This tool uses predefined or custom radii to gradually change the direction of pipelines.
-
nipplesShort pipe segments called "nipples" (also known as "barrel" or "swage") are used to join two fittings or pipes.
-
Collar / CouplingLinks two pipe sections in a straight run with a secure and leak-free joint.
Inconel Alloy Buttweld Fittings Grades We Offer
Inconel Alloy Pipe Fittings Price List
| Size Chart of Inconel Forged Fittings | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Tolerance of Inconel Buttweld Fittings
| Inconel Pipe Fittings Tolerance | 90 Deg And 45 Deg Elbows And Pipe Tee | Reducer (Concentric/ Eccentric) & Lap Joint Stub End (Long / Short) | Pipe End Caps | |||
| Normal Pipe Size (NPS) Of ASME B16.9 | O. (Outside) D. (Daimeter) at Bevel | I. (Inside) D.(Daimeter) at End | Wall Thickness Of T | Center-to-End Dimension A ,C ,B | Over-all Length Of H | Over-all Length Of F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Difference Between Inconel Buttweld Fittings and Incoloy Buttweld Fittings
Inconel Buttweld Fittings and Incoloy Buttweld Fittings are both nickel-based, but they differ in chemical composition and performance characteristics. Inconel, especially grades like UNS N06600 (DIN 2.4816), contains a higher percentage of nickel, giving it superior resistance to extreme heat and aggressive oxidizing environments. In contrast, Incoloy has higher iron content, which makes it cost-effective for moderate temperatures but less resistant to extreme thermal cycling. While Inconel Alloy B366 Buttweld Fittings are ideal for aerospace, nuclear, and furnace components, Incoloy is more suitable for marine and chemical processing where cost efficiency matters alongside corrosion resistance.
Manufacturing Process of Inconel Buttweld Fitting
Pipe
Cutting
Forming
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Elbow
Inspection
Analytic
Marking
Packing & Shipping
Applications of UNS N06600 Inconel Pipe Fittings
UNS N06600 Inconel Pipe Fittings are widely used across a broad spectrum of industries where elevated temperature, pressure, and corrosive environments are consistent challenges. These include aerospace systems, nuclear reactors, chemical processing plants, and oil & gas refineries. In power generation, they are used in steam lines and heat exchangers. In marine engineering, they offer extended service life in saltwater exposure. In chemical industries, these fittings resist a variety of harsh substances including acids, chlorides, and organic solvents, making them reliable for reactors, transfer lines, and outlet systems.
Midland Alloys Inc., based in India, is a reliable exporter of Inconel Buttweld Fittings to various global markets. We export Inconel fittings to a wide range of global markets, with regular shipments to Gulf countries such as the UAE, Saudi Arabia, Oman, Qatar, and Kuwait, driven by ongoing demand from oil, gas, and infrastructure projects. Our reach extends across Europe, including Germany, the UK, France, and Italy, and into the Asia-Pacific region, serving countries like Singapore, Malaysia, Indonesia, and South Korea. We are also expanding our footprint in Africa, with key clients in South Africa, Egypt, and Nigeria, as well as in Latin America, particularly Brazil. Each shipment is managed with precision, from export-grade packaging and documentation to port handling and logistics. Trusted by project contractors, OEMs, public sector units, and engineering firms, we are recognized as a reliable Inconel fittings exporter from India, committed to meeting international quality standards.
Why Choose Us for Inconel Buttweld Fittings ASTM B366
Midland Alloys Inc. is a leading Indian manufacturer and exporter of high-quality Inconel Buttweld Fittings ASTM B366, delivering excellence through innovation and adherence to global standards. We manufacture fittings under ISO 9001:2015 certified processes and strictly comply with ASTM, EN, and ASME norms. We offer extensive customization options—cut-to-length, bevel end, polished surface, and special schedules—to meet project-specific requirements. With a strong supply chain presence across Gulf countries, Europe, Africa, and Southeast Asia, we support clients globally with fast shipping and reliable export practices.
All fittings undergo in-house hydrotesting, PMI testing, and third-party inspections, and are dispatched with complete Mill Test Certificates (MTCs). Whether it’s a small batch or large bulk order, we assure timely dispatch, competitive Inconel Buttweld Fittings price per kg, and personalised support. We value long-term partnerships, offering technical consistency, transparent documentation, and sustained client satisfaction. Each Inconel Butt weld Fitting is marked as per ASTM A312 / ASME SA312 standards and supplied with complete MTCs validating mechanical and chemical properties.
FAQs –Inconel Alloy Buttweld Fittings
Inconel Buttweld Fittings price per kg or piece varies by type and quantity.
Yes, available in elbows, tees, reducers, stub ends—seamless, welded, and ERW.
Inconel Buttweld fittings apply to standards like ASTM B366, ASTM B564, ASME SB564, and DIN 2.4816.
Inconel pipe fittings refer to all types; buttweld fittings are joined by welding for leak-proof flow.
