Monel 400 Buttweld Fittings
- Home
- Buttweld Fitting
- Monel 400 Buttweld Fittings
Midland Alloys Inc. is a trusted Manufacturer and Supplier of Monel 400 Buttweld Fittings, offering a wide range of elbows, tees, reducers, caps, and stub ends. As a leading Monel 400 buttweld fittings manufacturer in India, we offer products that meet ASTM and ASME standards. Made from Monel 400, a nickel-copper alloy, these fittings deliver excellent strength and reliable performance in seawater and harsh service environments. To meet a range of piping requirements, options include seamless Monel 400 fittings, welded varieties, and pickled finishes. Wall thicknesses and diameters are also available.. Additionally, we provide forged fittings, ASME B16.9 Monel fittings for various industries, and Monel 400 elbows and tees. As a reliable Monel 400 pipe fittings supplier, we offer ready stock, ISO-certified quality, and global supply for complete Monel alloy piping solutions.
What is Monel Alloy 400 Buttweld Fitting?
Monel Alloy 400 buttweld fittings are pipe connection components made from a nickel-copper alloy known for high strength and proven resistance to seawater and aggressive chemical environments. In technical terms, what is Monel 400 buttweld fitting can be defined as a nickel-copper alloy fitting designed to join, branch, or redirect pipelines in demanding fluid transport systems. These UNS N04400 pipe fittings show reliable performance under pressure and maintain thermal stability, making them effective for both heated and cooled process lines. The fittings perform well in reducing and saline media, which explains their use in marine systems and chemical handling applications. Ease of fabrication and welding supports custom layouts where precision alignment is critical. All Monel 400 heat stability fittings are produced in compliance with ASTM B366 WP400 and ASME SB366 WP400 standards, ensuring dimensional accuracy and pressure integrity. With a defined Monel 400 fittings specification and consistent properties these components provide dependable flow control in complex piping networks.
Benefits of Monel Alloy 400 Buttweld Fitting
Monel Alloy 400 buttweld fittings offer alloy-specific functional advantages that make them dependable in demanding conditions. The alloy shows strong resilience in harsh media which supports its use in a wide range of piping systems. The points below outline the key material strengths.
- Saltwater durability – These fittings are reliable in seawater and marine flow systems. They are resistant to pitting, cracking and corrosion over extended durations of exposure.
- High tensile strength – The material carries heavy loads without distortion. It holds shape under high pressure and mechanical stress.
- Acid media compatibility – Monel 400 manages sulfuric, hydrofluoric, and acidic solutions with minimal attack. This makes it suitable for chemical processing lines.
- Weldable construction – The alloy accepts welding without cracking or loss of strength. This allows secure joints in complex piping layouts.
- Thermal resistance – It remains stable across high and fluctuating temperatures. This property supports use in both heated and cooled systems.
- Dimensional accuracy – Each fitting is made with tight tolerance and a consistent finish. This ensures precise alignment in demanding pipelines.
Specification of Monel 400 Butt Weld Pipe Fittings
This section covers the standard specifications of Monel 400 butt weld pipe fittings, including dimensions, sizes, and manufacturing standards. It helps in selecting the right fittings for system design and project requirements.
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
ASTM B366 / ASME SB366
DN15-DN1200
90 Deg. Elbow, 45 Degree Elbow, LR/SR Elbow, Reducers, Tee, Cross, Bends, U bend, 180 Deg Bend, End Cap, Lap-joint Stub End
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Beveled Ends, Plain Ends
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Pickled Finish,Sand/Shot Blasted Finish, Polished Finish
Types of Monel 400 Buttweld Fitting
Monel fittings are available in various shapes and ends to meet specific flow, directional and sealing needs. Each type supports proper alignment and dimension standards in pipeline systems.
-

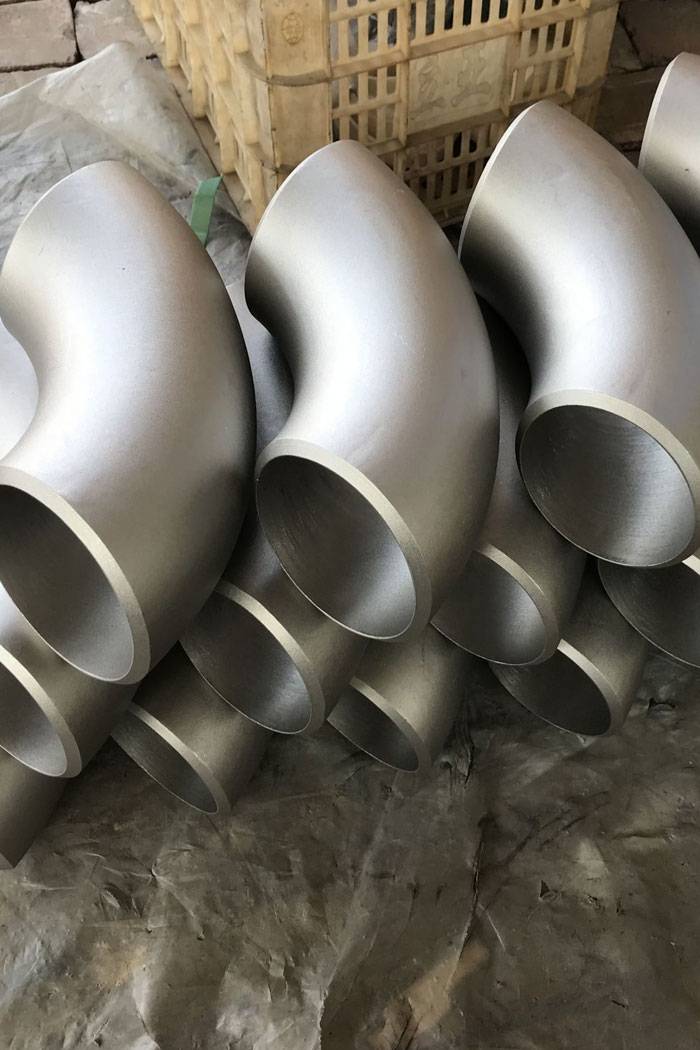

Elbow (90°, 45°)changes the flow direction in piping layouts. It helps guide fluid around corners with minimal pressure loss.
-
Tee (Equal Tee, Reducing Tee)connects three pipes at one point. It allows smooth branching of flow in different directions.
-
A reducer (eccentric or concentric)joins pipes of different diameters. It ensures a steady transition in size without disrupting flow.
-
stub endIt is paired with a lap joint flange. It allows easy dismantling of pipe sections for maintenance.
-
End Capcloses the end of a pipeline. It prevents leakage, and keeps the system secure when not in use.
-
Cross (Equal Cross, Reducing Cross)links four pipes at a common junction. It divides or combines the flow from different directions.
-
BendThey provide a gradual or sharp turn in the pipeline. It maintains steady flow while changing direction.
-
nipplesIt is a short piece of pipe with threads or bevels. It connects two fittings or extends the pipe length.
-
Couplingjoins two pipes inline for continuity. It can be full or half type depending on the need.
-
Return Bend (180°)turns the flow back in the opposite direction. It is often used in heat exchangers or coil piping.
Technical Details & Delivery Condition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel Alloy Buttweld Fittings Grades We Offer
Monel Alloy Pipe Fittings Price List
| Price List of Monel 400 Pipe Fittings</strong > | Monel Alloy K500 Pipe Fittings Price in India (INR)</strong > | Alloy 400 Pipe Fittings Price in USD</strong > | Monel K500 Pipe Fittings Price in UAE (Dirham)</strong > |
| 400 Monel Elbow Price List | ₹ 820 | $ 7.39 USD | 32.58 AED |
| Monel® Alloy K-500 Pipe Fittings Cost | ₹ 1500 | $ 17.82 USD | 52.11 AED |
| Monel 400 Elbow Price | ₹ 2200 | $ 63.17 USD | 350.30 AED |
| Monel® K500 Weld Fittings Prices | ₹ 1400 | $ 24.78 USD | 72.30 AED |
| Monel 400 Reducing Elbow Price | ₹ 590 | $ 4.82 USD | 34.20 AED |
| Monel K-500 Long Radius 90 Degree Elbow Price | ₹ 1340 | $ 14.06 USD | 72.96 AED |
| Price of Schedule 10 Monel 400 Pipe Fittings | ₹ 740 | $ 35.35 USD | 75.73 AED |
| Price of Monel K500 Reducer | ₹ 1520 | $ 18.00 USD | 63.53 AED |
| Monel Alloy 400 Seamless Fittings Price List | ₹ 2300 | $ 35.22 USD | 250.40 AED |
Monel Alloy Buttweld Pipe Fittings Manufacturing Standards
| ASME B16.9 Pipe Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Manufacturing Process of Monel 400 Buttweld Fitting
The manufacturing process of Monel 400 buttweld fittings begins with the selection of the raw material for Monel 400 alloy. The alloy is cut into required sizes and then shaped through hot or cold forming, depending on the design. In many cases, solution annealing is carried out to restore corrosion resistance and uniform structure. The fittings are surface finished to provide smooth edges and correct measurements. Before being tested with mechanical and non-destructive testing, each piece is thoroughly inspected for defects. Final products are supplied in compliance with international standards.
Pipe
Cutting
Forming
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Elbow
Inspection
Analytic
Marking
Packing & Shipping
Applications of 400 Monel alloy buttweld fittings
400 Monel alloy buttweld fittings are essential components of systems that require durability, strength, and resistance to pressure. It links pipes in the oil and gas industry that handle corrosive fluids, high-pressure steam, and sour gas. Chemical plants use it in reactors and processing lines where acid and alkali flow continuously. In power generation, Monel 400 seamless buttweld fittings manage high-temperature steam and cooling systems. In marine and shipbuilding, it is used in ballast systems, seawater cooling, and deck piping. Aerospace and defense applications include jet fuel systems, hydraulic lines, and engine sections where failure is not an option. Their toughness ensures that operations run safely and smoothly.
Midland Alloys Inc., headquartered in India, has established itself as a leading exporter of Monel 400 products to international markets. We maintain a continuous supply throughout the Gulf area, including the UAE, Saudi Arabia, Oman, Qatar and Kuwait, where demand is driven by oil and gas projects and big construction projects. Our reach is expanding in Europe, with regular exports to Germany, the UK, France, and Italy, and across the Asia-Pacific region, covering Singapore, Malaysia, Indonesia, and South Korea. We also cater to growing markets in Africa, such as South Africa, Egypt, and Nigeria, along with Latin America, where Brazil remains a key destination. To ensure timely delivery, each shipment is processed with detailed customs paperwork, export-quality packing, and careful port management. Over the years, we have built strong working relationships with project contractors, OEMs, distributors, and government agencies across the world.
Why Choose Midland Alloys Inc.
Midland Alloys Inc. is an ISO 9001 certified manufacturer known as a trusted Monel 400 manufacturer and iso certified Monel fittings supplier. We have a global export network with prompt delivery and supply Monel alloy 400 to meet project schedules. As a Monel 400 vendor with ready stock, we supply materials in custom lengths, finishes, and coil forms. Also, offering custom Monel 400 solutions tailored to varied industry needs. Every Monel 400 comes with material traceability and with test certification to ensure reliability in demanding applications. With 24/7 customer assistance, we continue to stand out as a dependable partner for quality, and service worldwide.
FAQs –Monel 400 Alloy Buttweld Fittings
Yes, Monel 400 Buttweld Fittings perform well in high-temperature environments up to around 1000°F (538°C).
Yes, they offer excellent resistance to seawater and marine environments, making them ideal for offshore and shipbuilding applications.
They are commonly linked using the buttwelding procedure, which produces strong, leak-proof and long-lasting joints.
