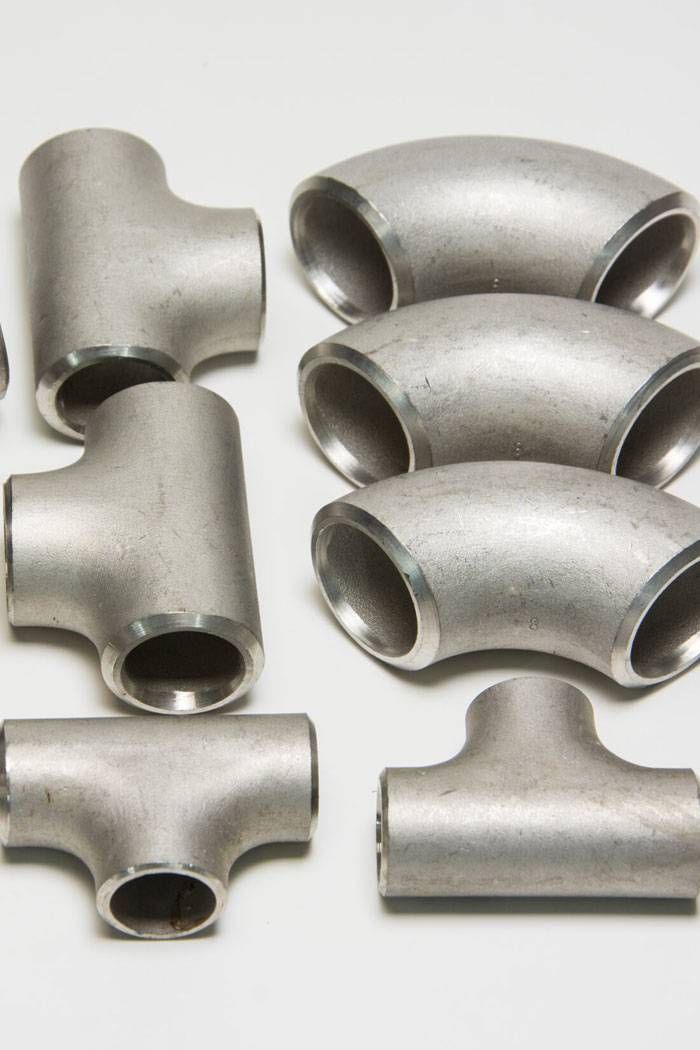

Nickel Alloy Buttweld Fittings are pipe fittings made from nickel-based alloys that connect pipes and allow smooth flow in high-pressure and high-temperature systems. Midland Alloys is a trusted name in the metal industry, known for supplying top-quality piping products worldwide. Our fittings offer excellent resistance to corrosion, heat, and wear, making them ideal for tough industrial use. It comes in Nickel Alloy Buttweld Fittings in various grades, including Nickel 200, Nickel 201, and Alloy 400. These fittings are perfect for use in the power generating, marine, petrochemical, and chemical sectors. To meet a variety of pipe layouts and requirements, nickel buttweld pipe bends are available in elbows, tees, reducers, and caps.
Benefits of Nickel Alloy Buttweld Fittings
Nickel Alloy Buttweld Fittings offer several benefits that make them a top choice for harsh and high-demand environments. They are built to perform under pressure and last for years with minimal maintenance.
- Corrosion Resistance: Even in acidic and marine environments, these fittings are resistant to corrosion, oxidation, and chemical attack.
- High Strength and Durability: The Nickel Alloy Buttweld Pipe Cap holds up well under heavy pressure and mechanical stress without cracking or deforming.
- Excellent Weldability and Formability: Nickel alloy fittings are easily weldable and shapeable, making them ideal for custom piping setups.
- Resistance to Creep and Thermal Expansion: Even after extended exposure to high temperatures, they keep their strength and form.
- Longevity and Reliability: These fittings provide a long service life and consistent performance, thereby reducing downtime and replacement costs.
Difference between Nickel Alloy Buttweld Fittings vs other materials
Nickel Alloy Buttweld Fittings offer better performance than carbon steel buttweld fittings in harsh environments. Carbon steel fittings work well in general applications but can rust or weaken when exposed to moisture, chemicals, or high heat. Without breaking or deteriorating, nickel alloys can handle high temperatures (over 600°C), acids and chlorides. Additionally, they don’t wear down as quickly and perform better in pressure cycles. Technically, they offer stronger resistance to stress corrosion, pitting, and thermal expansion. While carbon steel is less expensive, nickel alloy fittings last longer and need less maintenance, making them a better choice for harsh environments.
Specification of Nickel Alloy Buttweld Fittings
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
ASTM B366 / ASME SB366
DN15-DN1200
90 Deg. Elbow, 45 Degree Elbow, LR/SR Elbow, Reducers, Tee, Cross, Bends, U bend, 180 Deg Bend, End Cap, Lap-joint Stub End
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Beveled Ends, Plain Ends
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Pickled Finish,Sand/Shot Blasted Finish, Polished Finish
Types of NIckel Alloy Buttweld Fitting
Nickel fittings are available in various shapes and ends to meet specific flow, directional and sealing needs. Each type supports proper alignment and dimension standards in pipeline systems.
-

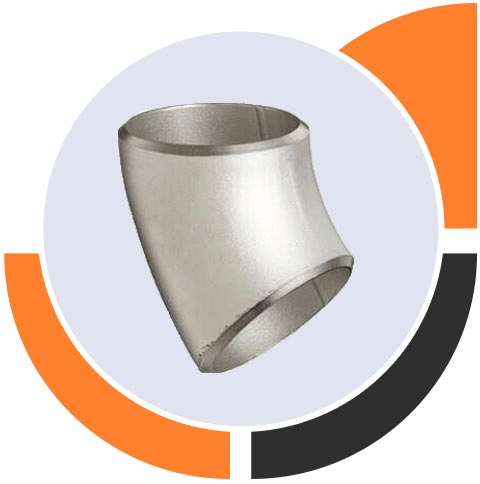

Elbow (90°, 45°, Long Radius, Short Radius)Modifies the pipeline's flow direction at predetermined angles with regulated radii.
-

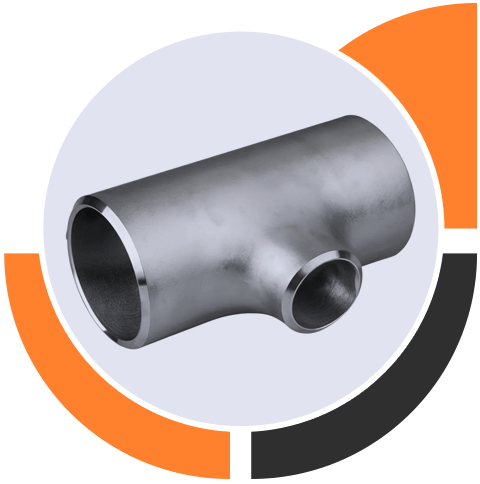

Tee (Equal Tee, Reducing Tee)Adjusts the size of the main and branch lines to split or combine flow at 90° intersections.
-

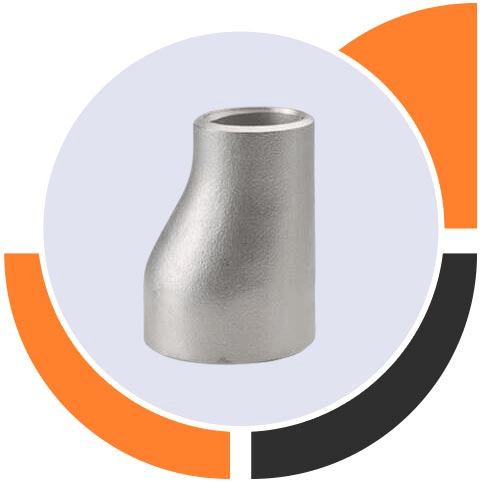

A reducer (eccentric or concentric)joins pipes with varying diameters while preserving flow offset or alignment.
-
stub endIn non-permanent piping configurations, the stub end (long or short) connects to lap joint flanges for disassembly.
-
Return Bends (180° bend)Redirects flow by 180 degrees, allowing the pipeline to reverse direction.
-
Cross (Equal Cross, Reducing Cross)Provides multidirectional flow by joining four pipes at right angles.
-
pipe capTo stop flow or pressure, an end cap also known as a pipe cap, seals the pipe's open end.
-
Bend (3D, 5D, Custom Radius)This tool uses predefined or custom radii to gradually change the direction of pipelines.
-
nipplesShort pipe segments called "nipples" (also known as "barrel" or "swage") are used to join two fittings or pipes.
-
Collar / CouplingLinks two pipe sections in a straight run with a secure and leak-free joint.
Technical Details & Delivery Condition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
NIckel Alloy Buttweld Fittings Grades We Offer
Nickel Alloy Pipe Fittings Price List
| Price List of Nickel Alloy 200 Pipe Fittings</strong > | Nickel 201 Pipe Fittings Price in India (INR)</strong > | Alloy 200 Pipe Fittings Price in USD</strong > | Nickel Alloy 201 Pipe Fittings Price in UAE (Dirham)</strong > |
| 200 Nickel Alloy Elbow Price List | ₹ 950 | $ 8.39 USD | 35.58 AED |
| Nickel Alloy 201 Pipe Fittings Cost | ₹ 1400 | $ 15.82 USD | 42.11 AED |
| Nickel Alloy 200 Elbow Price | ₹ 2300 | $ 65.17 USD | 320.30 AED |
| Nickel 201 Weld Fittings Prices | ₹ 1600 | $ 25.78 USD | 76.30 AED |
| Nickel Alloy 200 Reducing Elbow Price | ₹ 580 | $ 5.82 USD | 35.20 AED |
| Nickel Alloy 201 Long Radius 90 Degree Elbow Price | ₹ 1440 | $ 15.06 USD | 73.96 AED |
| Price of Schedule 10 Nickel Alloy 200 Pipe Fittings | ₹ 750 | $ 36.35 USD | 78.73 AED |
| Price of Nickel Alloy 201 Reducer | ₹ 1420 | $ 17.00 USD | 65.53 AED |
| Nickel 200 Seamless Fittings Price List | ₹ 2500 | $ 34.22 USD | 270.40 AED |
Nickel Alloy Buttweld Pipe Fittings Manufacturing Standards
| ASME B16.9 Pipe Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
How NIckel Alloy Buttweld Fitting Are Manufactured
Pipe
Cutting
Forming
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Elbow
Inspection
Analytic
Marking
Packing & Shipping
Applications of Nickel Alloy Buttweld Fittings
Nickel Alloy Buttweld Fittings play an important role in some of the toughest industrial environment. In the oil and gas industry, they handle high-pressure pipelines and fight off corrosion from sour gas and harsh fluids. Chemical plants use Nickel Buttweld Reducer for strong joints that hold up against acids and high temperatures. Power plants use these fittings to carry steam and high-temperature water through boilers and turbines without leaks. Aerospace needs them in engine parts, and fuel systems where both strength and precision matter. Nickel 200 Buttweld Fittings help maintain sterile, clean connections that comply to safety regulations even in the pharmaceutical and food processing industries.
Midland Alloys Inc., based in India, supplies Nickel Alloy Buttweld Fittings to clients worldwide. Our fittings are commonly exported to Gulf nations such as UAE, Saudi Arabia, Oman, Qatar and Kuwait, for application in oil & gas and infrastructure systems. We’re also growing in Asia-Pacific countries, which include South Korea, Singapore, Malaysia and Indonesia, as well as Europe, which includes Germany, the United Kingdom, France and Italy. We are expanding our presence in Africa, and Latin America, with exports to South Africa, Nigeria, Egypt and Brazil. We follow strict export procedures which include customs documentation, seaworthy packaging, and reliable port logistics. We have strict export procedures, that involve customs documentation, seaworthy packaging and dependable port logistics. Our collaborations include OEMs, contractors, and global distributors who rely on our quality, and delivery reliability.
Why choose Nickel Alloy Buttweld Fittings
Midland Alloys Inc. offers Nickel Alloy Buttweld Fittings that have unmatched performance in demanding applications. As an ISO 9001 certified manufacturer, we ensure top-quality products with excellent corrosion resistance, high-temperature strength, and long service life. To meet your precise requirements, we provide our fittings in a variety of coil shapes, lengths, and finishes. With a global export network we guarantee timely delivery and complete material traceability. To guarantee complete adherence to industry standards, each product is put through stringent in-house testing and comes with third-party inspection reports. Our 24/7 customer support is always ready to assist you, making us a trusted partner for reliable and efficient piping solutions.
FAQs –Nickel Alloy Buttweld Fittings
Yes, Midland Alloys Inc. offers custom lengths, finishes, and grades including Nickel 200, Nickel 201, and Alloy 400, tailored to your project needs.
Depending on the grade, these fittings can handle temperatures exceeding 600°C without losing mechanical integrity.
Absolutely. Nickel alloys are known for their exceptional resistance to both acidic and alkaline media, including sulfuric, hydrochloric, and caustic solutions.
Nickel buttweld fittings follow standard OD dimensions as per ASME B16.9. For example, a 2-inch fitting typically has an OD of 60.3 mm, while a 4-inch fitting has an OD of 114.3 mm.
