Stainless Steel 904L Buttweld Fittings are high-alloy, corrosion-resistant fittings made with a balanced composition of 23% nickel, 19% chromium, 4% molybdenum, nitrogen, and controlled levels of carbon, manganese, silicon, phosphorus, and sulfur. These fittings provide reliable strength and excellent resistance to harsh environments. Midland Alloys is a trusted SS 904L buttweld fittings supplier in India, providing fittings in sizes ranging from 1/8″ to 48″ and schedules ranging from SCH 5s to 160 and XXS.
Types include ebows for changing directions, tees and reducing tees for branching, reducers for connecting different pipe sizes, crosses for four-way connections, nipples for extending lines, and end caps for sealing pipe ends. Available in custom forms, dimensions, and types. Our UNS N08904 butt weld fittings meet ASME B16.9 and B16.28 standards and are supplied globally.
Benefits of ASTM A403 WP904L Butt Weld Fittings
- Strong 220 MPa yield and 490 MPa tensile strength.
- 70–90 HRB hardness ensures durability in high-pressure systems.
- Excellent stress corrosion and crevice attack resistance.
- Non-magnetic with high toughness and easy weldability.
- Performs well in warm seawater and chloride-rich conditions.
- Maintains structural integrity in aggressive chemical processes.
- Long service life reduces replacement and maintenance costs.
Specification of SS 904L Buttweld Fittings
This section outlines the general specifications of SS 904L butt weld fittings, including standards, dimensions, types, and sizes as per ASTM A403.
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
ASTM A403 / ASME SA403
Forge, Cast, Push, Press, etc.
90 Deg. Elbow, 45 Degree Elbow, LR/SR Elbow, Reducers, Tee, Cross, Bends, U bend, 180 Deg Bend, End Cap, Lap-joint Stub End
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Plain End, Beveled End, Treaded
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Seamless / Welded / Fabricated
Types of SS 904L Buttweld Fittings
904L stainless steel buttweld fittings are components used to connect, redirect, or terminate sections of pipe in industrial systems. These fittings are well known for their exceptional strength and resistance to corrosion making them perfect for demanding applications involving high pressure and severe conditions. It is frequently used in pipelines for chemicals, oil and gas, and ships. They are available in various types and sizes to match different piping layouts, and system designs.
-
Elbow (90°, 45°, Long/Short Radius)Used to change the direction of flow in a pipeline at specified angles; available in short or long radius.
-
Tee (Equal & Reducing)Divides flow into two branches; an equal tee has all ends the same size, a reducing tee has one smaller outlet.
-
Reducer (Concentric & Eccentric)Connects pipes of different diameters; concentric type is symmetrical, eccentric has an offset centerline.
-
Stub End (Short & Long Pattern)Used with lap joint flanges to allow easy dismantling; available in short and long lengths.
-
End CapCloses the end of a pipe to stop flow and protect the system.
-

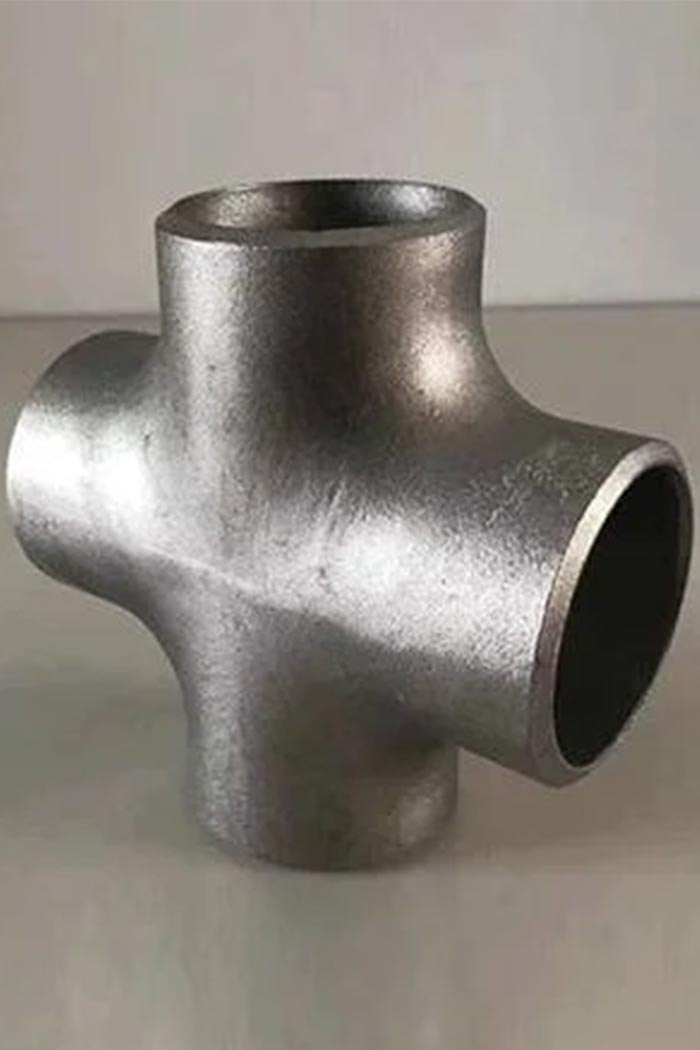

Cross (Equal & Reducing)Connects four pipes; equal type has all ports the same size, reducing type has different sized outlets.
-
Lateral TeeBranches pipe at a 45° angle for smoother flow direction changes.
-
Pipe BendMakes gradual directional changes in piping with large-radius curves.
-
Return Bends (180°)Turns the flow 180 degrees, commonly used in U-shaped configurations.
-
CollarProvides a flat surface for bolted connections, often used with flanges.
-
NippleShort length of pipe with male threads or beveled ends for close connection between fittings.
-
Barred TeeFeatures a bar across the branch opening to prevent flow into unwanted areas, used in piggable systems.
-
Expansion JointAbsorbs thermal expansion and vibration in piping systems.
-
Swage NippleConnects pipes of different diameters, typically from a larger pipe to a smaller one.
- Reducer Insert
Inserted into a fitting to reduce the outlet size without using a separate reducer.
Contact us today to discuss how Stainless Steel 904L Buttweld Fittings can benefit your application. Whether you need guidance in selecting the right Buttweld Fittings or have specific requirements, our team of experts is here to help you find the optimal solution.
Technical Details & Delivery Condition
The detailed chemical composition of 904L stainless steel highlights elements like chromium, nickel, molybdenum, and carbon.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
The mechanical strength table of 904L outlines tensile strength, yield strength, elongation, and hardness.
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
The section compares international grade equivalents of SS 347 and 347H, helping identify corresponding standards like UNS, EN, and JIS.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
The pressure ratings of SS 904L fittings across various schedules and temperature ranges for safe usage.
| Temperature (°C) | Pressure Rating (MPa) | Pressure Rating (psi) |
|---|---|---|
| -29 to 38 | 20.0 | 2900 |
| 100 | 17.6 | 2550 |
| 200 | 15.5 | 2250 |
| 300 | 13.5 | 1960 |
| 400 | 12.0 | 1740 |
| 500 | 10.5 | 1520 |
| 600 | 9.0 | 1310 |
Stainless Steel Buttweld Fittings We Offer
ASTM B366 WP904L Stainless Steel Pipe Fittings
| Products | Size | |
| ASTM B366 WP904L SS Elbow – Long Radius | ASTM B366 WP904L SS Stub Ends | Sizes 1/2″ – 48″ |
| ASTM B366 WP904L SS Elbow – Short Radius | ASTM B366 WP904L SS Cross | |
| ASTM B366 WP904L SS Reducing Elbow | ASTM B366 WP904L SS Reducing Cross | |
| ASTM B366 WP904L SS 45° Elbow | ASTM B366 WP904L SS Tees | |
| ASTM B366 WP904L SS Fabricated Tee | ASTM B366 WP904L SS End Cap | |
| ASTM B366 WP904L SS Reducer | ASTM B366 WP904L SS Coupling | |
| ASTM B366 WP904L SS Concentric Reducer | ASTM B366 WP904L SS Pipe Nipple | |
| ASTM B366 WP904L SS Eccentric Reducer | ASTM B366 WP904L SS 5D Elbow | |
| ASTM B366 WP904L SS 3D Elbow | ASTM B366 WP904L SS Welded Pipe Fittings | |
Stainless Steel 904L Buttweld Fittings Dimension
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
| (inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Prices above are approximate and subject to change based on raw material costs, pipe form, and market demand.
Stainless Steel 904L Buttweld Fittings Weight Chart
| Pipe Elbow Nominal Size | Pipe Elbow Outside Diameter Y | Wall Thickness T (Pipe Elbow Schedule) | 45 Deg. Elbow LR Centre to Face B | 45 Deg. Elbow LR Weight | 90 Deg. Elbow LR Centre to Face A | 90 Deg. Elbow LR Weight | 90 Deg. Elbow SR Centre to Face A | 90 Deg. Elbow SR Weight | ||
| mm | in | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Prices above are approximate and subject to change based on raw material costs, pipe form, and market demand.
Difference Between 304 and 904L Stainless Steel Buttweld Fittings
Stainless steel 304 buttweld fittings offer good corrosion resistance and strength for general use, but stainless steel 904L buttweld fittings perform better in harsh, chloride-rich, and acidic environments. 904L has higher nickel and molybdenum content, which gives it greater resistance to pitting, crevice corrosion, and stress cracking. It also has better mechanical properties and a longer lifespan in demanding applications, making it a preferred choice for chemical and marine industries.
Manufacturing Process of SS 904L Buttweld Fittings
The process starts with choosing certified SS 904L Buttweld Fittings that meet strict quality standard. Depending on the type of fitting, we precisely cut the raw material. After that, heat or cold forming techniques are used to mold the parts into reducers, tees, elbows, and other shapes. After shaping, we apply solution annealing to improve the grain structure, and remove internal stress. Surface finishing follows, using pickling, passivation, or blasting for a clean, corrosion-resistant surface. Each fitting goes through final inspection and non-destructive testing to confirm quality and performance.
Pipe
Cutting
Forming
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Elbow
Inspection
Analytic
Marking
Packing & Shipping
Stainless Steel 904L Buttweld Fittings Applications
Seamless stainless steel 904L butt weld fittings are used in industries with harsh chemicals and stringent requirements. UNS-N08904 buttweld fittings are used in chemical processing plants to handle strong acids, oil and gas systems for offshore and onshore pipelines, and pulp and paper mill bleaching equipment. 904L pipe fittings in the food and beverage industry promote hygienic and corrosion-free flow lines, whereas welded SS 904L butt weld fittings are critical in power generation, desalination plants, and marine applications.
We ship buttweld fittings made of 904L stainless steel to clients worldwide. We frequently export to Gulf nations having high demand for oil and gas as well as construction, such as the United Arab Emirates, Saudi Arabia, Oman, Qatar, and Kuwait. Our presence is also growing fast in Europe, with steady orders from Germany, the UK, France and Italy. In the Asia-Pacific region, we supply fittings to Singapore, Malaysia, Indonesia, and South Korea. We also reach emerging markets in Africa and Latin America, including South Africa, Egypt, Nigeria, and Brazil. Every export meets customs requirements, with secure packaging, proper port handling, and timely delivery. Over the years, we’ve built trusted relationships with project contractors, OEMs, local distributors, and government buyers who trust us for reliable supply and service.
Why Choose Midland Alloys Inc. for SS 904L Butt Weld Fittings
Midland Alloys Inc. is a trusted SS 904L buttweld fittings supplier in India, known for providing quality pipe fittings. We are ISO 9001:2015 certified and can fittings come with PED 2014/68/EU and EN 10204 3.1/3.2 Mill Test Certificates. We also conduct third-party inspections by TÜV, BV, SGS, and DNV. We provide DIN EN 1.4539 butt weld fittings to leading engineering firms, EPC contractors, marine operators, and chemical plants, providing consistent on-time delivery and expert export documentation. Each fitting goes through NDT tests such as Hydrostatic, UT, RT and PMI—and mechanical checks like tensile, hardness, flattening, and bend tests. Clients across the Middle East, Europe, and Southeast Asia trust us for ASTM B366 WP904L pipe fittings quality and reliability.
FAQs –SS 904L Buttweld Fitting
Yes, 904L has superior corrosion resistance, particularly in chloride and acidic environments, making it more suitable for harsh conditions.
Elbow, Tee, Reducing Tee, Reducer, Cross, Nipple, and End Cap are available in both seamless and welded configurations.
Yes, they have excellent weldability and can be easily joined using standard welding techniques.
No, it is best for demanding environments where long-term performance offsets the higher initial cost.
