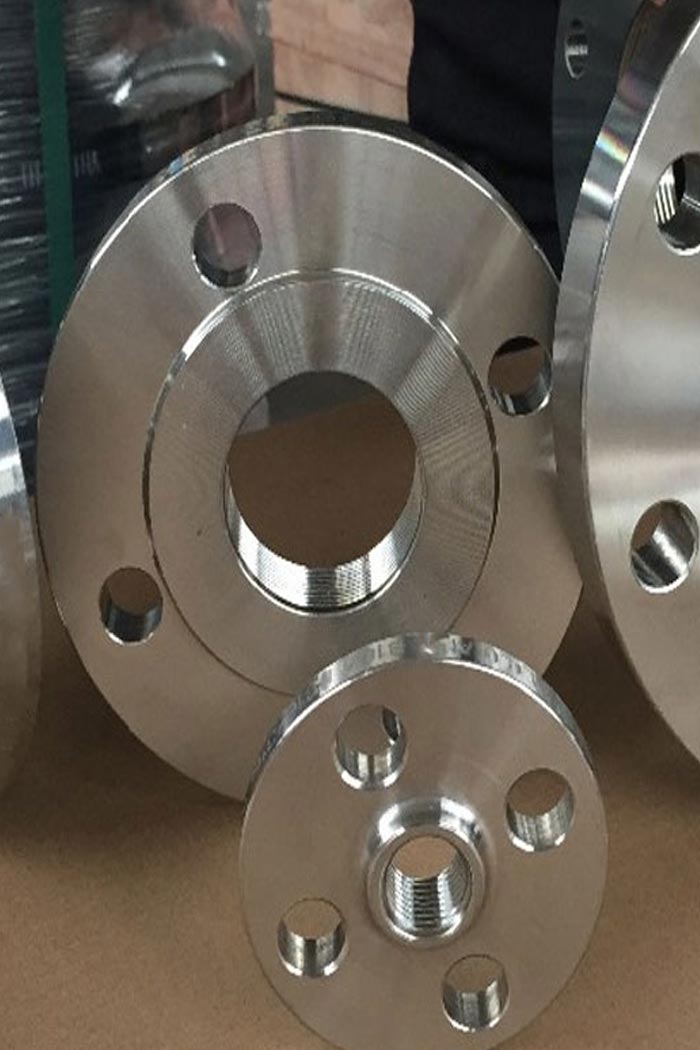

Stainless Steel 317/317L Flanges Manufacturer
Midland Alloys Inc. is a trusted Indian manufacturer and global supplier of stainless steel flanges, specializing in high-performance SS 317/317L flanges. These flanges, which come in Flate Face (FF), Raised Face (RF), and Ring Type Joint (RTJ) face types, are designed with improved mechanical strength and resistance to corrosion. We manufacture ANSI B16.5 SS 317 Flanges and ASME SA182 SS 317 flanges in compliance with global quality standards. With precise chemical compositions—UNS S31700 flanges containing higher molybdenum (3–4%) and carbon content lower in 317L our flanges offer outstanding pitting resistance and weldability. We provide SUS 317L Flanges, SS 1.4449 Blind Flanges and SS S31700 Weld Neck Flange in a range of sizes and pressure classes, from Class 150 to 2500. To guarantee safe international delivery, every 317 stainless steel flange is put through a rigorous testing process and packaged in wooden boxes, pallets or crates.
Benefits of Using Stainless Steel 317/317L Flanges
In harsh chemical and thermal settings, SS 317/317L flanges provide outstanding value. They withstand corrosion over time and function dependably under pressure
- Increased ability to withstand environments that contain sulfur and chlorine
- Better weldability and a lower chance of intergranular corrosion
- 75,000 psi of high tensile strength for structural performance
- Weld joints and thermal stability are enhanced by low carbon content.
- Withstands temperatures as high as 1454 °C.
- Available in a variety of schedule ranges and pressure ratings
- Outstanding resistance to pitting and crevice corrosion
- Perfect for sanitary processing systems in vital industries
Stainless Steel 317/317L Flanges Specification
1/2" (15 NB) to 48" (1200NB)
ASTM A182 / A240 & ASME SA182 / SA240
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Threaded / Screwed / Forged / Plate
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Forging, Rolling, Casting
FNPT, NPT, BSPT, MNPT, BSPP
Contact us today to discuss how Stainless Steel 317/317L Flanges can benefit your application. Whether you need guidance in selecting the right pipes or have specific requirements, our team of experts is here to help you find the optimal solution.
Technical Details & Delivery Condition
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 317 | S31700 | – | – | 1.4449 | – | – | – |
| 317L | S31703 | – | – | 1.4438 | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 317 | min. | – | – | – | – | – | 18.0 | – | 11.0 | – |
| max. | 0.8 | 2.0 | 1.00 | 0.040 | 0.03 | 20.0 | 14.0 | – | ||
| 317L | min. | – | – | – | – | – | 18.0 | 3.00 | 11.0 | – |
| max. | 0.03 | 2.0 | 0.75 | 0.040 | 0.03 | 20.0 | 4.00 | 15.0 | – | |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 317 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
| 317L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Stainless Steel Flanges Grades We Offer
Difference Between Stainless Steel 317/317L Flanges and Stainless Steel 316 Flanges
While stainless steel 316 flanges contain 2–3% molybdenum SS 317/317L flanges have 3–4%, providing superior resistance to pitting and crevice corrosion in aggressive chemical environments. Because 317L has less carbon (0.035% max) than 317 (0.08% max), it is more weldable without sacrificing strength. 317L is more dependable for high-temperature applications than 316L because it has better stress-to-rupture, tensile and creep strength. SS 317/317L has a higher nickel content, which increases its resistance to reducing media.
SS 316 flanges include mildly corrosive settings like food processing, architectural elements, and marine hardware. However, SS 317/317L flanges are the preferred choice for petrochemical piping, pulp and paper production, chemical processing facilities and power plants where frequent exposure to high temperatures and harsh acids occurs. Critical systems that require a longer service life and less maintenance under corrosive and thermal stress can benefit from 317/317L’s superior alloy composition.
Plate
Shear
Press
Inspection
Lathe
Drilling
Cleaning
Flange
Inspection
Analytic
Marking
Packing & Shipping
Applications of Stainless Steel 317/317L Flanges
Stainless steel 317L flange suppliers in India cater to diverse industries that require exceptional performance in harsh conditions. In the petrochemical sector, these flanges ensure safe pipeline connectivity for aggressive acids and high-pressure flows. Power generation units use them for turbine connections and steam lines due to their high-temperature endurance. The food processing industry benefits from the hygienic, corrosion-resistant properties, especially in cleaning and sterilisation zones. The ASTM A182 F317L flange guarantees leak-proof sealing in refineries and offshore rigs used in the oil and gas sector. These flanges are used by sugar plants to handle syrup and acidic substances extending their operational life.
Why Choose Midland Alloys Inc. for SS UNS S31703 Flanges
Midland Alloys Inc. is a leading Indian manufacturer and exporter of high-quality SS 317/317L flanges, committed to delivering ASTM-compliant, ISO-certified flange solutions. ASME SA182 and EN 1092-1 specifications are closely adhered to in our manufacturing. We offer complete customization choices, such as surface treatment, end finish, cut-to-length, and special schedule variations. Backed by a strong global presence, we supply across Gulf nations, Europe, Africa, and Southeast Asia. Each product undergoes Eddy Current Examining, Hydrostatic Analysis, Positive Material Identification (PMI), and Pitting Protection Tests, ensuring performance reliability. On request, we also offer third party inspection and Mill Test Certificates (MTC). We help client create enduring infrastructure with confidence and trust by providing timely delivery and responsive support for both small order and large exports.
FAQs
Because SS 317L contains less carbon than SS 317 it is more weldable.
SS 317L flange price per kg in India typically ranges from ₹450 to ₹600 depending on size and finish.
SS 317 flange price per kg in India usually falls between ₹500 and ₹650 based on order volume and specs.
