Midland Alloys Inc. is a reputable Indian producer and international supplier of carbon steel forged fittings, providing high performance products designed to be compatible, with international pressure piping standards. Our forged carbon steel fittings are manufactured with ASTM A105 and carbon steel A106 are designed for exceptional strength and durability. This ensures consistent mechanical properties and reliable performance across several industries. As their chemical composition is precisely controlled, our carbon steel fittings offer excellent elongation, high tensile strength, and optimal area reduction, which makes them perfect for high-pressure and high-temperature applications. Our forging process enhances grain structure, increasing toughness and reducing internal defects. We provide both socket weld carbon steel forged fittings and carbon steel threaded forged fittings, supporting varied installation needs. With dimensional accuracy, strict adherence to ASME B16.11, and certified material traceability, Midland Alloys guarantees consistent quality in every fitting.
Benefits of Carbon Steel Forged Fittings
Carbon steel forged fittings provide outstanding value in critical piping systems due to their unmatched mechanical integrity and adaptability. Widely used in industrial applications, these fittings ensure performance, strength, and safety over a prolonged service life.
- Higher durability and strength at high temperature and pressure
- High resilience to vibration fatigue and mechanical stress
- Excellent dimensional accuracy for leak-free installation
- Outstanding versatility in fabrication and weldability
- Compatible for threaded as well as socket weld piping systems
- Surface coatings reduce corrosion
- Cost-effective solution for industrial use in large quantities
- Minimal maintenance requirements throughout the duration of operation
For all industries and high-pressure applications, carbon steel forged fittings are preferred due to their mechanical strength and affordability. On the other hand, Hastelloy forged fittings offer superior resistance to corrosive environments, particularly in chemical processing systems. While carbon steel is ideal for oil and gas, power plants, and hydraulic lines due to its high tensile strength and durability, Hastelloy fittings are essential where extreme corrosion resistance is critical, such as in reactors and marine equipment. Carbon steel is more likely to rust if it is not properly coated, but hastelloy fittings maintain their mechanical stability in oxidizing and reducing environments. However, due to its lower material and fabrication costs, carbon steel still remains the material of choice when operating conditions include mechanical stress rather than aggressive chemicals.
Specification of Carbon Steel Forged Fittings
Socketweld : 1/8" to 4" NB
Screwed-Threaded : 1/8" to 4" NB
ASTM A105, A350 LF2, A694 F42/F60/F65/F70
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Forge, Cast, Push, Press, etc.
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Socketweld Fittings, Screwed-Threaded Fittings
Types of Carbon Steel Forged Fittings
Manufacturing Types
-
Threaded Forged FittingsDesigned with internal or external threads, these fittings allow quick assembly and disassembly without welding.
-
Socket Weld Forged FittingsThese fittings are joined by inserting the pipe into a recessed area of the fitting and welding around it, ensuring strong, leak-proof joints.
-
Screwed FittingsSimilar to threaded types, screwed fittings are connected using screw threads, making installation simple and cost-effective.
-
BSPTBushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
-
NPTEnd caps are used to seal a pipeline's end, shielding it from impurities and guaranteeing closed systems' safety.
Forms
-
Forged ElbowElbows, which come in 45° and 90° varieties shift the direction of flow with little pressure loss.
-
Forged BushingBushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
-

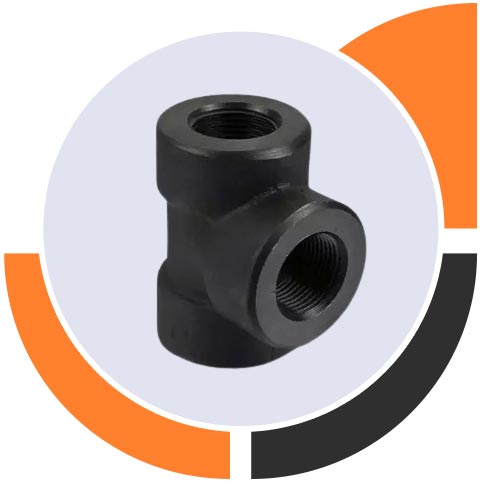

Forged TeeUsed to split or combine flow across three directions essential for branching pipeline.
-
Forged CouplingOffer a safe connection between two pipes; threaded and socket-welded options are available.
-
Forged PlugClose open pipe ends which are frequently used for isolation or testing.
-

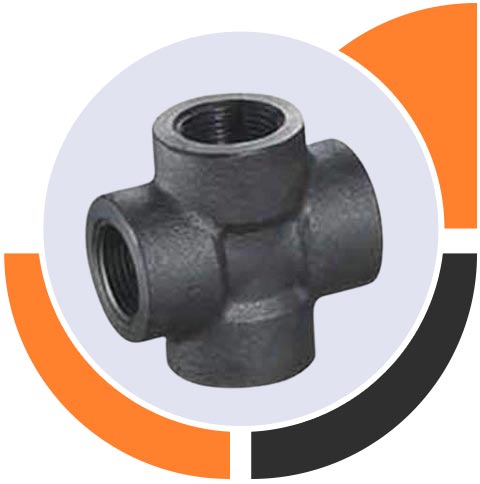

Forged CrossWith four openings, cross fittings help connect four pipes used when fluid distribution needs to occur in multiple directions.
Carbon Steel Forged Fittings Grades We Offer
Carbon Steel Forged Fittings Manufacturing Standards
| ASTM A105 – ASME SA105 | Standard Specification for Wrought Austenitic Carbon Steel Piping Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Carbon Steel Forged Fittings Tolerance Chart
| Dimensions | Up to 2″ NB | 2 1/2″ & 3″ NB | |
| Socket Bore | + 0.25 | + 0.38 | |
| – 0.00 | – 0.00 | ||
| Body Bore | + 0.00 | + 0.00 | |
| – 1.52 | – 3.00 | ||
| A | 1/4″ NB | ± 0.8 | ± 2.50 |
| 3/8″ TO 3/4″ NB | ± 1.6 | ||
| 1″T0 2″NB | ± 2.0 | ||
Carbon Steel Forged Fittings Pressure Rating
| Fittings | Size | |
|---|---|---|
| Carbon Steel Forged 90° Elbows | Carbon Steel Socket Couplings | Sizes 1/8″ – 4″ Fittings Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Carbon Steel NPT 45° Elbows | Carbon Steel Threaded Reducers | |
| Carbon Steel Forged Street Elbows | Carbon Steel SW Inserts | |
| Carbon Steel Threaded Tees | Carbon Steel Forged Caps | |
| Carbon Steel Socket Crosses | Carbon Steel NPT Unions | |
Manufacturing Standards of Carbon Steel Forged Fittings
Raw Material
Cutting
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Pickling / Passivating
Inspection
Analytic
Marking
Packing & Shipping
Applications of Carbon Steel Forged Fittings
ASME B16.11 carbon steel forged fittings are used across a wide range of industries due to their robustness and flexibility in handling high-pressure flow systems. In oil and gas, they are critical in refining units, pipelines, and offshore platforms for securely connecting pipe sections. Power generation plants use ASTM A105 carbon steel forged fittings for high-temperature steam lines and turbine connections. In petrochemical industries, these fittings withstand demanding mechanical loads and thermal variations. They are also widely used in shipbuilding, hydraulics, water treatment plants, and construction systems. Carbon steel socket weld forged fittings and carbon steel threaded forged fittings are selected according to system pressure, accessibility, and ease of installation and thus are extremely flexible for temporary and permanent installations in industrial applications.
Why Choose Carbon Steel Forged Fittings from Midland Alloys Inc.
Midland Alloys Inc. is a trusted Indian manufacturer and exporter of high quality carbon steel forged fittings, providing customized solutions that meet international industry standards. Being an ISO 9001:2015-certified company, we are dedicated to precision manufacturing under strict standards that adhere to ASME B16.11 dimensional and pressure class standards. We provide full customization, including special schedules, surface finishes, end connections, and cut-to-length services to match project specifications. Our wide global supply footprint covers key regions like the Gulf, Europe, Africa, and Southeast Asia. Every fitting undergoes in-house testing, including hydrostatic tests, ultrasonic tests, and mechanical property evaluations, and is accompanied by Mill Test Certificates (MTCs) confirming chemical and mechanical compliance. Third-party inspections are also available. With consistent on-time delivery, experienced export packaging, and reliable logistics, Midland Alloys ensures every customer receives dependable service and top-tier forged components. We focus on building long-term partnerships based on product integrity, technical compliance, and trusted client support.
FAQs – Carbon Steel Forged Fittings
The carbon steel forged fittings price per kg depends on material grade (e.g., ASTM A105, A106).
Yes, BS 3799 carbon steel forged fittings are dimensionally equivalent to ASME B16.11 specifications if matched with due care. Always verify tolerance and pressure class before system integration.
Absolutely yes, due to their high tensile strength and secure joint integrity, carbon steel forged fittings are commonly used in high-vibration environments like hydraulic systems, and rotating machinery pipelines.
