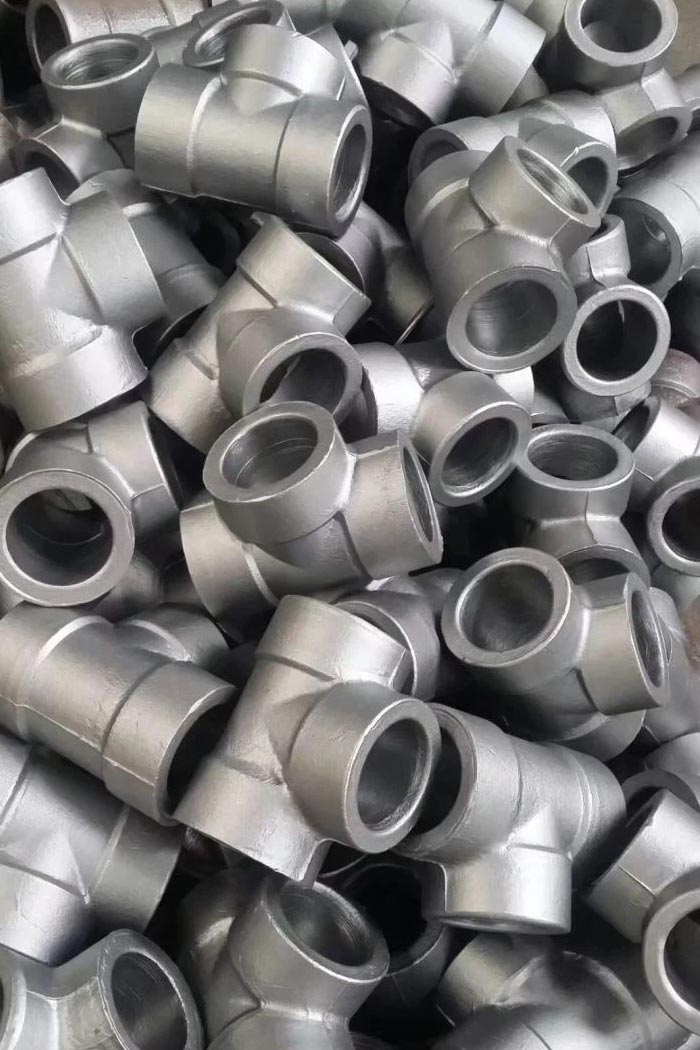

Midland Alloys is a trusted Hastelloy C22 forged fittings manufacturer in India, offering top-grade components built for extreme environments. These fittings are made from nickel alloy C22 (UNS N06022), known for its excellent resistance to corrosion, pitting, and stress cracking. Designed as per ASTM B564 / ASME SB564, these forged fittings meet strict global quality standards. We supply Alloy C22 forged fittings worldwide in various types like socket weld, threaded elbows, tees, couplings, and more. Each serves a unique purpose in piping systems. They are available in custom sizes, forms, and pressure ratings. With advanced chemical properties, including high nickel, chromium and molybdenum content, Hastelloy N06022 forged fittings are ideal for tough industrial conditions. We have years of experience, a global footprint, and a solid reputation for quality, timely delivery, and client satisfaction.
Benefits of Hastelloy C22 Forged Fittings
Hastelloy C22 forged fittings offer reliable performance in demanding industries. Here’s why many engineers prefer them:
- Corrosion Resistance: These alloy C22 forged fittings are resistant to a variety of chemicals, including strong oxidizers and reducing agents
- High Strength and Durability: With a strong nickel-molybdenum base, they perform under high stress and harsh environments
- Resistance to Pitting and Crevice Corrosion: Excellent for systems exposed to chlorides and other aggressive media
- Wide Temperature Range: Maintains strength and integrity even when exposed to extremes of temperature
- Weldability: Nickel alloy C22 forged fittings are easy to weld using standard methods without cracking
Both nickel alloy C22 forged fittings and Hastelloy C276 forged fittings offer excellent corrosion resistance, but they’re designed for slightly different environments. C22 performs well in oxidizing environments and can easily handle harsh chemicals including ferric chloride, nitric acid, and wet chlorine. C276, on the other hand, is more effective in reducing environments such as hydrochloric acid and hydrogen chloride gas. C22 has a higher chromium content, giving it broader chemical resistance. In the meantime, C276 is frequently used due to its ability to significantly reduce service. When deciding between the two, the main difference comes down to application needs, as Hastelloy C22 vs C276 forged fittings are all about choosing the right material for the specific chemical exposure.
Specification of Hastelloy C22 Forged Fittings
Socketweld : 1/8" to 4" NB
Screwed-Threaded : 1/8" to 4" NB
ASTM B564/ASME SB564
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Forge, Cast, Push, Press, etc.
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Socketweld Fittings, Screwed-Threaded Fittings
Types of Hastelloy C22 Forged Fittings
Manufacturing Types
-
Threaded Forged FittingsDesigned with internal or external threads, these fittings allow quick assembly and disassembly without welding.
-
Socket Weld Forged FittingsThese fittings are joined by inserting the pipe into a recessed area of the fitting and welding around it, ensuring strong, leak-proof joints.
-
Screwed FittingsSimilar to threaded types, screwed fittings are connected using screw threads, making installation simple and cost-effective.
-
BSPTBushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
-
NPTEnd caps are used to seal a pipeline's end, shielding it from impurities and guaranteeing closed systems' safety.
Forms
-
Forged ElbowElbows, which come in 45° and 90° varieties shift the direction of flow with little pressure loss.
-
Forged BushingBushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
-
Forged TeeUsed to split or combine flow across three directions essential for branching pipeline.
-
Forged CouplingOffer a safe connection between two pipes; threaded and socket-welded options are available.
-
Forged PlugClose open pipe ends which are frequently used for isolation or testing.
-
Forged CrossWith four openings, cross fittings help connect four pipes used when fluid distribution needs to occur in multiple directions.
Contact us today to discuss how Hastelloy C22 Forged Fittings can benefit your application. Whether you need guidance in selecting the right pipes or have specific requirements, our team of experts is here to help you find the optimal solution.
Technical Details & Delivery Condition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
Hastelloy Forged Fittings Grades We Offer
Hastelloy C22 Forged Fittings Pressure Rating Chart
| Size (Inches) | Temperature (°F) | Pressure Rating (PSI) |
|---|---|---|
| 1/2″ | 100°F | 1,200 |
| 1/2″ | 200°F | 1,150 |
| 1/2″ | 300°F | 1,100 |
| 1″ | 100°F | 1,000 |
| 1″ | 200°F | 950 |
| 1″ | 300°F | 900 |
| 1-1/2″ | 100°F | 850 |
| 1-1/2″ | 200°F | 800 |
| 1-1/2″ | 300°F | 750 |
| 2″ | 100°F | 700 |
| 2″ | 200°F | 650 |
| 2″ | 300°F | 600 |
Hastelloy C22 Forged Fittings Weight Chart
| Size (Inches) | Weight (Kg) | Weight (Lbs) |
|---|---|---|
| 1/2″ | 0.45 | 0.99 |
| 3/4″ | 0.56 | 1.23 |
| 1″ | 0.68 | 1.50 |
| 1-1/4″ | 0.90 | 1.98 |
| 1-1/2″ | 1.10 | 2.42 |
| 2″ | 1.35 | 2.97 |
| 2-1/2″ | 1.75 | 3.85 |
| 3″ | 2.10 | 4.63 |
| 4″ | 2.50 | 5.51 |
| 5″ | 3.10 | 6.83 |
| 6″ | 3.70 | 8.16 |
| 8″ | 5.20 | 11.46 |
Hastelloy C22 Forged Fittings Tolerance Chart
| Size (Inches) | Outer Diameter Tolerance (mm) | Wall Thickness Tolerance (mm) | Length Tolerance (mm) |
|---|---|---|---|
| 1/2″ | ±0.5 | ±0.3 | ±2.0 |
| 3/4″ | ±0.6 | ±0.3 | ±2.0 |
| 1″ | ±0.7 | ±0.4 | ±2.5 |
| 1-1/4″ | ±0.8 | ±0.4 | ±2.5 |
| 1-1/2″ | ±0.9 | ±0.5 | ±3.0 |
| 2″ | ±1.0 | ±0.5 | ±3.0 |
| 2-1/2″ | ±1.1 | ±0.6 | ±3.5 |
| 3″ | ±1.2 | ±0.6 | ±3.5 |
| 4″ | ±1.4 | ±0.7 | ±4.0 |
| 5″ | ±1.5 | ±0.8 | ±4.0 |
| 6″ | ±1.6 | ±0.9 | ±5.0 |
Manufacturing Standards of Hastelloy C22 Forged Fittings
Raw Material
Cutting
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Pickling / Passivating
Inspection
Analytic
Marking
Packing & Shipping
Uses of ANSI B16.11 Class 3000 C22 Fittings
Hastelloy super alloy forged fittings are widely used in industries that demand durability in harsh conditions. They are used in chemical processing because of their resistance to oxidizing agents in heat exchangers, scrubbers, and acid handling pipelines. In the oil and gas sector, Hastelloy C22 socket weld forged fittings are used in subsea pipelines, wellhead equipment, and sour gas systems. Hastelloy C22 threaded forged fittings are utilized in pharmaceutical facilities to preserve product purity in sterile pipelines and reactors. They’re also used in power generation, pulp and paper, and marine applications where high pressure, high temperature, and corrosion are routine challenges.
Why Choose Midland Alloys Inc. for Hastelloy Super Alloy Forged Fittings
Midland Alloys Inc. is a reliable Alloy C22 forged fittings supplier in India, known for delivering high-quality materials that meet strict industry standards. We are ISO 9001:2015 certified, comply with PED 2014/68/EU and give EN 10204 3.1/3.2 Mill Test Certificates. We also facilitate TÜV, BV, SGS, and DNV third-party inspections. Our team guarantees proper documentation, and export compliance for smooth international delivery. Our Hastelloy super alloy forged fittings are trusted by customers in the Middle East, Europe, and Southeast Asia for repeat orders because of our quality and service. We perform rigorous testing like hydrostatic testing, ultrasonic testing (UT), radiographic testing (RT), and PMI to validate the material. Mechanical tests like tensile, hardness, bend, and flattening are done as per project needs.
FAQs – Hastelloy C22 Forged Fittings
Hastelloy C22 forged fittings are commonly available in Class 2000, 3000, and 6000 pressure ratings, depending on the fitting type and application.
Yes, thanks to their excellent resistance to chloride-induced corrosion and pitting, Hastelloy C22 forged fittings are ideal for seawater and marine environments.
The Hastelloy C22 forged fittings price per kg varies based on size, type, and quantity. Contact us for the most accurate and up-to-date pricing details based on your requirements.
