Inconel 625 Forged Fittings Manufacturer
- Home
- Forged Fittings
- Inconel 625 Forged Fittings

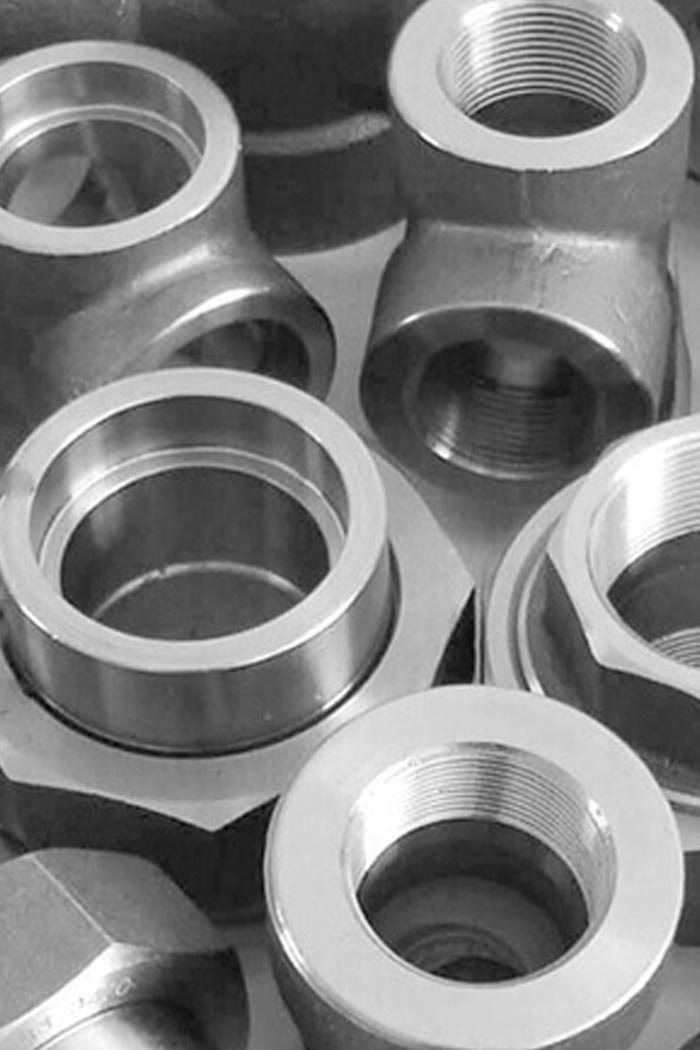

Midland Alloys Inc. is a trusted Indian manufacturer and global supplier of Inconel 625 alloy forged fittings, offering precision-engineered components built for extreme environments. Known for their strength, durability, and excellent corrosion resistance, our forged Inconel 625 pipe fittings are crafted to meet demanding applications across chemical, marine, aerospace, and power industries. The alloy consists of nickel (58% min), chromium (20–23%), molybdenum (8–10%), and niobium (3.15–4.15%), all of which work together to prevent pitting, crevice corrosion, and stress corrosion cracking. Excellent performance under temperature and pressure is ensured by the tensile strength of 827 MPa, yield strength of 414 MPa, and elongation of 30%. The reduction of area for Inconel 625 stands at 45%, further reflecting its toughness. These socket-welded, threaded, and custom-made forged fittings, which meet ASTM B564 and ASME SB-564 UNS N06625 specifications, are available in sizes ranging from 1/8′′ to 4′′ NB.
Benefits of Inconel 625 Forged Fittings
Forged fittings designed with Inconel Alloy 625 are incredibly dependable in demanding situations due to their exceptional strength and corrosion resistance. They offer long-term stability in high-stress applications, ensure reliable performance, and require minimal maintenance.
- Outstanding resilience to harsh industrial fluids, acids, and seawater
- Better resistance to oxidation and scaling in high-heat operations
- Exceptionally resistant to corrosion in environments with high-temperature exposure
- Excellent oxidation and scaling resistance in high-heat operations
- Outstanding weldability without the need for post-weld heat treatment
- Maintains mechanical integrity in both cryogenic and high-temperature conditions
- Proven performance in offshore, chemical, and nuclear environments
- Long lifespan, minimizing replacement and system downtime
Inconel 718 forged fittings are intended for superior strength and pressure resistance, especially in aerospace and turbine conditions, whereas Inconel 625 forged fittings are tailored for corrosion and flexibility in high-temperature and seawater services. While Inconel 625 depends on solid solution strengthening, that provide better weldability and formability, Inconel 718 offers higher tensile, and yield strength due to age hardening treatment. As being members of the nickel-chromium family, Inconel 718 is preferred for mechanical load-bearing applications, while Inconel 625 is effective well in environments that are used at extremely high temperatures and prone to corrosion.
Specification of Inconel 625 Forged Fittings
Socketweld : 1/8" to 4" NB
Screwed-Threaded : 1/8" to 4" NB
ASTM B564/ASME SB564
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Forge, Cast, Push, Press, etc.
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Socketweld Fittings, Screwed-Threaded Fittings
Types of Inconel 625 Forged Fittings
Manufacturing Types
-
Threaded Forged FittingsDesigned with internal or external threads, these fittings allow quick assembly and disassembly without welding.
-
Socket Weld Forged FittingsThese fittings are joined by inserting the pipe into a recessed area of the fitting and welding around it, ensuring strong, leak-proof joints.
-
Screwed FittingsSimilar to threaded types, screwed fittings are connected using screw threads, making installation simple and cost-effective.
-
BSPTBushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
-
NPTEnd caps are used to seal a pipeline's end, shielding it from impurities and guaranteeing closed systems' safety.
Forms
-
Forged ElbowElbows, which come in 45° and 90° varieties shift the direction of flow with little pressure loss.
-
Forged BushingBushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
-
Forged TeeUsed to split or combine flow across three directions essential for branching pipeline.
-
Forged CouplingOffer a safe connection between two pipes; threaded and socket-welded options are available.
-
Forged PlugClose open pipe ends which are frequently used for isolation or testing.
-
Forged CrossWith four openings, cross fittings help connect four pipes used when fluid distribution needs to occur in multiple directions.
Contact us today to discuss how Inconel 625 Forged Fittings can benefit your application. Whether you need guidance in selecting the right pipes or have specific requirements, our team of experts is here to help you find the optimal solution.
Technical Details & Delivery Condition
| Grade | C | Mn | Si | S | Al | Ti | Fe | Ni | Cr |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.40 max | 0.40 max | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa -930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Inconel 625 | N06625 | 2.4856 | NC22DNB4M | NiCr22Mo9Nb | NCF 625 | NA 21 | ХН75МБТЮ | ЭИ602 |
Inconel Forged Fittings Grades We Offer
Inconel 625 Forged Fittings Price List
| Price List of Inconel 625 Forged Fittings | Inconel Alloy 625 Forged Fittings Price in India (INR) | Alloy 625 Forged Pipe Fittings Price in USD | Inconel 625 Forged Fittings Price in UAE (Dirham) |
| 625 Inconel Forged Elbow Price List | ₹ 680 | $ 7.69 USD | 25.58 AED |
| Inconel® Alloy 625 Forged Fittings Cost | ₹ 1200 | $ 14.82 USD | 48.11 AED |
| Inconel 625 Socketweld Pipe Elbow Price | ₹ 5400 | $ 65.17 USD | 270.30 AED |
| Inconel® 625 Forged Fittings Prices | ₹ 1607 | $ 25.78 USD | 84.30 AED |
| Inconel 625 Street Elbow Price | ₹ 566 | $ 6.85 USD | 25.50 AED |
| Inconel 625 Forged Equal Tee Price | ₹ 2080 | $ 18.06 USD | 34.96 AED |
| Price of Pressure Class 2000LBS Inconel 625 Forged Fittings | ₹ 651 | $ 16.33 USD | 42.61 AED |
| Price of Inconel 625 Couplings | ₹ 1297 | $ 18.00 USD | 68.44 AED |
| Inconel Alloy 625 Threaded Fittings Price List | ₹ 2700 | $ 32.21 USD | 150.27 AED |
Inconel 625 Forged Fittings Manufacturing Standards
| Standard | Types | Class Rating/Schedule | Ends | Size |
| ASME B16.11 | 90°Elbow/ 45°Elbow/ Tee/ Cross | 2000LB | Threaded | 1/4”~4” |
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling | 3000LB/6000LB | Threaded | 1/4”~4” | |
| Socket-welding | 1/8”~4” | |||
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling | 9000LB | Socket-welding | 1/2”~2” | |
| Street Elbow | 3000LB | Threaded | 1/8”~2” | |
| 6000LB | 1/8”~1-1/2” | |||
| Lateral Tee | 3000LB | Socket-welding | 1/4”~2” | |
| 6000LB | 1/2”~1-1/2” | |||
| 3000LB | Threaded | 3/8”~2‘’ | ||
| 6000LB | 1/2”~2” | |||
| 9000LB | 1/2”~1-1/2” | |||
| Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug | 3000LB/6000LB | Threaded | 1/8”~4” | |
| MSS SP79 | Reducer Inserts | 3000LB/6000LB/9000LB | Socket-welding | 3/8‘’x1/4”~2×1/2” |
| MSS SP83 | Union | 3000LB | Socket-welding/Threaded | 1/8”~3” |
| MSS SP95 | Concentric/Eccentric Swaged Nipples | See Below Note1 | 1/4‘’~12” | |
| Bull Plugs | Threaded | 1/8”~12” | ||
| MSS SP97 | Weldolet | – | – | – |
| Sockolet | 3000LB/6000LB | Socket-welding | 1/8”~6” | |
| Threadolet | 3000LB/6000LB | Threaded | 1/8”~6” | |
| Nipolet | XS/XXS | Plain/Threaded | 1/2”~2” | |
| Elbolet | 3000LB/6000LB | Socket-welding/Threaded | 1/4”~2” | |
| – | – | – | ||
| Latrolet | 3000LB/6000LB | Socket-welding/Threaded | 1/2”~2” | |
| – | – | – | ||
| Flangolet,Nipolet,Sweepolet,etc. available as per client’ demands. | ||||
| BS3799 | Hex Nipple | 3000LB/6000LB | Threaded | 1/8”~2”x1/2” |
| Bosses | 3000LB | Threaded | 1/8”~2” | |
| 6000LB | Threaded | 1/8”~4” | ||
Manufacturing Standards of Inconel 625 Forged Fittings
Raw Material
Cutting
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Pickling / Passivating
Inspection
Analytic
Marking
Packing & Shipping
Applications of Inconel 625 Forged Fittings
UNS N06625 forged fittings are widely used in industries requiring high strength, corrosion resistance, and temperature stability. In the chemical processing sector, these fittings resist aggressive acids and oxidizing agents. In marine engineering, they combat saltwater corrosion in piping systems. Power generation facilities rely on them for high-temperature steam lines and nuclear reactor components. Oil and gas industries use DIN 2.4856 Inconel 625 forged fittings in offshore platforms and subsea piping due to their chloride stress resistance. They are utilized in turbine connections and exhaust systems in aerospace. Additionally, these forged fittings composed of nickel alloy 625 support heat exchangers, pollution control devices and specialized processing systems that require dependable joint integrity under heat and pressure.
Why Choose UNS N06625 Forged Fittings from Midland Alloys Inc.
Midland Alloys Inc. is a well-known manufacturer and exporter of high-quality ASME SB-564 forged Inconel fittings from India, as an ISO-certified company, we ensure consistent quality products. Our UNS N06625 forged fittings undergo strict in-house testing, mill certification and third-party inspection to ensure full compliance, with ASTM/ASME specifications. We provide specialized solutions, such as surface treatments, end finishes, cut-to-length services and particular schedules. Mill Test Certificates (MTC) attesting to the mechanical and chemical properties of our ASME B16.11 Inconel 625 forged fittings are provided. With a global footprint covering the Gulf, Europe, Africa and Southeast Asia, we support timely delivery, bulk or project-specific orders, and full technical support. Our team ensures accurate fit, long-term dependability, and trustworthy customer service whether you’re sourcing Inconel 625 threaded forged fittings, or Inconel 625 forged socket weld fittings. We build relationships based on performance, satisfaction, and trust.
FAQs – Inconel 625 Forged Fittings
The price of Inconel 625 forged fittings per kg is based on material availability, size, type (socket weld/threaded) and quantity required.
We provide Inconel 625 forged fittings in size range from 1/8″ to 4″ NB are offered in different pressure classes, and end connections.
