Inconel Forged Fittings Manufacturer
- Home
- Forged Fittings
- Inconel Forged Fittings
Midland Alloys Inc. is a reliable Indian producer and global supplier of Inconel Forged Fittings, which are designed for high-performance industrial use. We provide socket weld and threaded forged fittings in Inconel grades 600, 601, 625, 718 and X750, adhering to the ASTM B564, ASME, and SB-564 standards. These nickel-based alloys have superior strength, corrosion resistance, and thermal stability. With up to 100 ksi tensile strength and 30% elongation, our fittings are leak-proof and maintain dimensional precision in corrosive and high-pressure environments.
Benefits of Inconel Forged Fittings
Inconel forged fittings deliver unmatched performance in aggressive environments where other materials fail. They are beneficial in many industries due to their resistance to heat, stress, and corrosion.
- Outstanding resistance to corrosion and oxidation at high temperatures
- Superior mechanical strength in the face of thermal cycling and high pressure
- Superior mechanical strength at high pressure and thermal cycling
- Extended service life even in chloride-rich or corrosive environments
- Flexible performance in petrochemical, chemical, and marine environments
- Suitable for forming, brazing, and welding operations
- Dependable in both cryogenic and high-temperature applications
- Smooth internal surface minimizes pressure drop and turbulence
Inconel 625 forged fittings are known for their excellent corrosion resistance and high tensile strength without the need for precipitation hardening. They are appropriate for use with seawater, acids and high-stress applications. On the other hand, Inconel 718 forged fittings are appropriate for high-pressure, high-temperature nuclear and aerospace applications and offer superior strength due to age-hardening. While both share a high-nickel base, 718 contains niobium and exhibits greater creep resistance. 625 has excellent at weldability and corrosion resistance while 718 provides better mechanical performance in challenging conditions, that call for exceptional resistance and structural integrity.
Specification of Inconel Forged Fittings
Socketweld : 1/8" to 4" NB
Screwed-Threaded : 1/8" to 4" NB
ASTM B564/ASME SB564
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Forge, Cast, Push, Press, etc.
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Socketweld Fittings, Screwed-Threaded Fittings
Types of Inconel Forged Fittings
Manufacturing Types
-
Threaded Forged FittingsDesigned with internal or external threads, these fittings allow quick assembly and disassembly without welding.
-
Socket Weld Forged FittingsThese fittings are joined by inserting the pipe into a recessed area of the fitting and welding around it, ensuring strong, leak-proof joints.
-
Screwed FittingsSimilar to threaded types, screwed fittings are connected using screw threads, making installation simple and cost-effective.
-
BSPTBushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
-
NPTEnd caps are used to seal a pipeline's end, shielding it from impurities and guaranteeing closed systems' safety.
Forms
-
Forged ElbowElbows, which come in 45° and 90° varieties shift the direction of flow with little pressure loss.
-
Forged BushingBushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
-

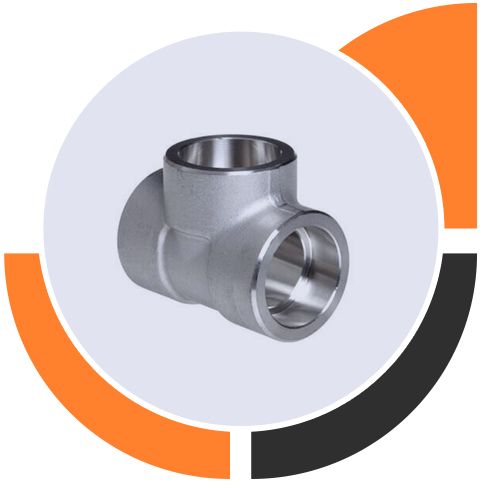

Forged TeeUsed to split or combine flow across three directions essential for branching pipeline.
-

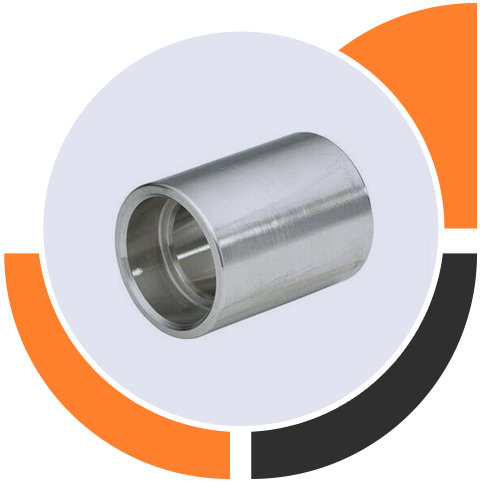

Forged CouplingOffer a safe connection between two pipes; threaded and socket-welded options are available.
-
Forged PlugClose open pipe ends which are frequently used for isolation or testing.
-

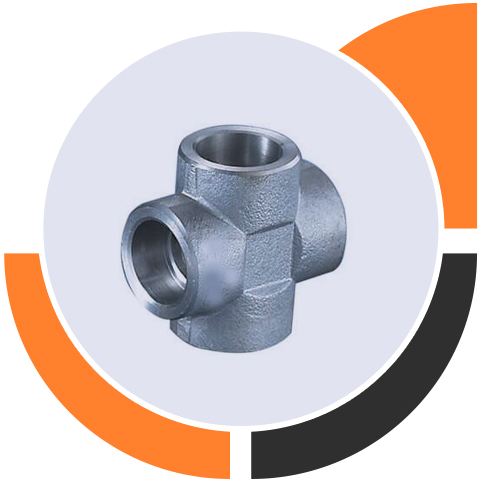

Forged CrossWith four openings, cross fittings help connect four pipes used when fluid distribution needs to occur in multiple directions.
Inconel Forged Fittings Grades We Offer
Inconel Forged Fittings Price List
| Price List of Inconel 600 Forged Fittings | Inconel Alloy 600 Forged Fittings Price in India (INR) | Alloy 600 Forged Pipe Fittings Price in USD | Inconel 600 Forged Fittings Price in UAE (Dirham) |
| 600 Inconel Forged Elbow Price List | ₹ 620 | $ 7.69 USD | 25.58 AED |
| Inconel® Alloy 600 Forged Fittings Cost | ₹ 1200 | $ 14.82 USD | 48.11 AED |
| Inconel 600 Socketweld Pipe Elbow Price | ₹ 5800 | $ 70.17 USD | 270.30 AED |
| Inconel® 600 Forged Fittings Prices | ₹ 1607 | $ 25.78 USD | 82.30 AED |
| Inconel 600 Street Elbow Price | ₹ 585 | $ 6.85 USD | 25.50 AED |
| Inconel 600 Forged Equal Tee Price | ₹ 1173 | $ 15.06 USD | 30.96 AED |
| Price of Pressure Class 2000LBS Inconel 600 Forged Fittings | ₹ 841 | $ 12.33 USD | 42.61 AED |
| Price of Inconel 600 Couplings | ₹ 1297 | $ 18.00 USD | 65.44 AED |
| Inconel Alloy 600 Threaded Fittings Price List | ₹ 2300 | $ 26.21 USD | 120.27 AED |
Inconel Forged Fittings Manufacturing Standards
| Standard | Types | Class Rating/Schedule | Ends | Size |
| ASME B16.11 | 90°Elbow/ 45°Elbow/ Tee/ Cross | 2000LB | Threaded | 1/4”~4” |
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling | 3000LB/6000LB | Threaded | 1/4”~4” | |
| Socket-welding | 1/8”~4” | |||
| 90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling | 9000LB | Socket-welding | 1/2”~2” | |
| Street Elbow | 3000LB | Threaded | 1/8”~2” | |
| 6000LB | 1/8”~1-1/2” | |||
| Lateral Tee | 3000LB | Socket-welding | 1/4”~2” | |
| 6000LB | 1/2”~1-1/2” | |||
| 3000LB | Threaded | 3/8”~2‘’ | ||
| 6000LB | 1/2”~2” | |||
| 9000LB | 1/2”~1-1/2” | |||
| Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug | 3000LB/6000LB | Threaded | 1/8”~4” | |
| MSS SP79 | Reducer Inserts | 3000LB/6000LB/9000LB | Socket-welding | 3/8‘’x1/4”~2×1/2” |
| MSS SP83 | Union | 3000LB | Socket-welding/Threaded | 1/8”~3” |
| MSS SP95 | Concentric/Eccentric Swaged Nipples | See Below Note1 | 1/4‘’~12” | |
| Bull Plugs | Threaded | 1/8”~12” | ||
| MSS SP97 | Weldolet | – | – | – |
| Sockolet | 3000LB/6000LB | Socket-welding | 1/8”~6” | |
| Threadolet | 3000LB/6000LB | Threaded | 1/8”~6” | |
| Nipolet | XS/XXS | Plain/Threaded | 1/2”~2” | |
| Elbolet | 3000LB/6000LB | Socket-welding/Threaded | 1/4”~2” | |
| – | – | – | ||
| Latrolet | 3000LB/6000LB | Socket-welding/Threaded | 1/2”~2” | |
| – | – | – | ||
| Flangolet,Nipolet,Sweepolet,etc. available as per client’ demands. | ||||
| BS3799 | Hex Nipple | 3000LB/6000LB | Threaded | 1/8”~2”x1/2” |
| Bosses | 3000LB | Threaded | 1/8”~2” | |
| 6000LB | Threaded | 1/8”~4” | ||
Manufacturing Standards of Inconel Forged Fittings
Raw Material
Cutting
Sizing
Heat Treatment
Pickling
Beveling
Polishing
Sand Blasting
Pickling / Passivating
Inspection
Analytic
Marking
Packing & Shipping
Applications of Inconel Forged Fittings
ASME SB‑564 forged Inconel fittings are widely used across industries that demand long-term durability, dimensional accuracy, and resistance to extreme conditions. These fittings withstand harsh acids and solvents in chemical processing facilities without degeneration. In marine engineering, Inconel alloy forged pipe fittings withstand saltwater corrosion and mechanical vibration. Aerospace systems depend on Inconel 718 forged fittings for turbine engines and high heat components. In nuclear power plants, Inconel 600 forged fittings serve critical roles in heat exchangers and reactor piping. Oil and gas sectors utilise Inconel 625 forged fittings in subsea and offshore drilling platforms, where exposure to hydrogen sulfide, and chloride stress requires reliable materials. The thermal stability of Inconel X750 forged fittings ensures safe operation over long cycles, which is beneficial for power generation facilities, especially those that use heated steam.
Why Choose Midland Alloys Inc. for Inconel Forged Fittings
Midland Alloys Inc. is a leading Indian manufacturer and exporter of high-quality ASME SB‑564 forged Inconel fittings offering complete material traceability and certified testing. Being an ISO certified company, we ensure strict control over each step of production to make sure that Inconel forged fitting meet international quality standards. Depending on the needs of the project, our team offers customized solutions such as cut to length machining, unique end finishes, unique schedules, and surface treatments. With an expanding global footprint, we serve customers in the Gulf, Europe, Africa, and Southeast Asia with both small and large orders. Our in-house labs conduct hardness, PMI, and hydrostatic tests, supported by mill certifications and third-party inspection as needed. We guarantee on-time delivery, project-specific documentation and expert logistics support. Every fitting is marked according to ASTM/ASME standards and supplied with Mill Test Certificates (MTCs) that verify its chemical composition and mechanical properties. Midland Alloys builds long-term partnerships grounded in trust, quality, and complete customer satisfaction.
FAQs – Inconel Forged Fittings
Inconel does not rust like iron, or carbon steel, as a result of its composition and the protective oxide layer that develops on the surface.
Yes, we provide Inconel forged threaded fittings and Inconel forged socket weld fittings according to ASTM B564 as per your system specifications.
