Nickel Alloy 200 Forged Fittings Manufacturer & Supplier

A well-known Indian manufacturer and global supplier of nickel alloy 200 forged fittings Midland Alloys Inc. It is designed to provide exceptional strength and resistance to corrosion in vital piping systems. Nickel Alloy 200 (UNS N02200/2.4066) a commercially pure wrought nickel with exceptional mechanical qualities and resistance to a range of corrosive environment is used in the manufacturing of these fittings. Forged from solid nickel billets, these fittings offer tight dimensional tolerance and high pressure handling capacity. They are perfect for high stress industrial setting because of their mechanical qualities, which include a density of 8.9 g/cm³, a melting point of 1446°C, tensile strength of 462 MPa yield strength of 148 MPa and elongation of 45%.

Benefits of Nickel Alloy 200 Forged Fittings

Nickel Alloy 200 Forged Fittings deliver excellent reliability and longevity in severe operating conditions. They are favored in the chemical and process industries due to their resistance to strong alkaline and acidic media.

Outstanding resistance to corrosion in acidic environment
Greater strength as a result of the solid forging process
Strict dimensional precision for installations that are impervious to leaks
Outstanding stability and thermal conductivity at high temperatures
Various arrangements such as elbows, tees, couplings, unions, and crosses
Conformance to BS3799, MSS SP-79/83/95/97 and ASME B16.11 standards
Dependable for applications involving Class 3000 and Nickel 200 schedule 80 forged fittings

Comparing Nickel Alloy 201 Forged Fittings with Nickel UNS N02200 Forged Fittings

While Nickel Alloy 200 (UNS N02200) and Nickel Alloy 201 (UNS N02201) share similar corrosion resistance and appearance, they differ significantly in carbon content and temperature performance. Nickel 200 contains higher carbon (up to 0.15%) making it suitable for applications under moderate temperatures. Nickel 201 is perfect for thermal processing equipment because of its superior resistance to high temperatures and its lower carbon content (0.02% max). Therefore, Nickel Alloy 201 Forged Fittings are better suited for elevated temperature service, while Nickel 200 Forged Fittings excel in caustic environments at ambient or slightly elevated temperatures.

Specification of Nickel Alloy 200 Forged Fittings

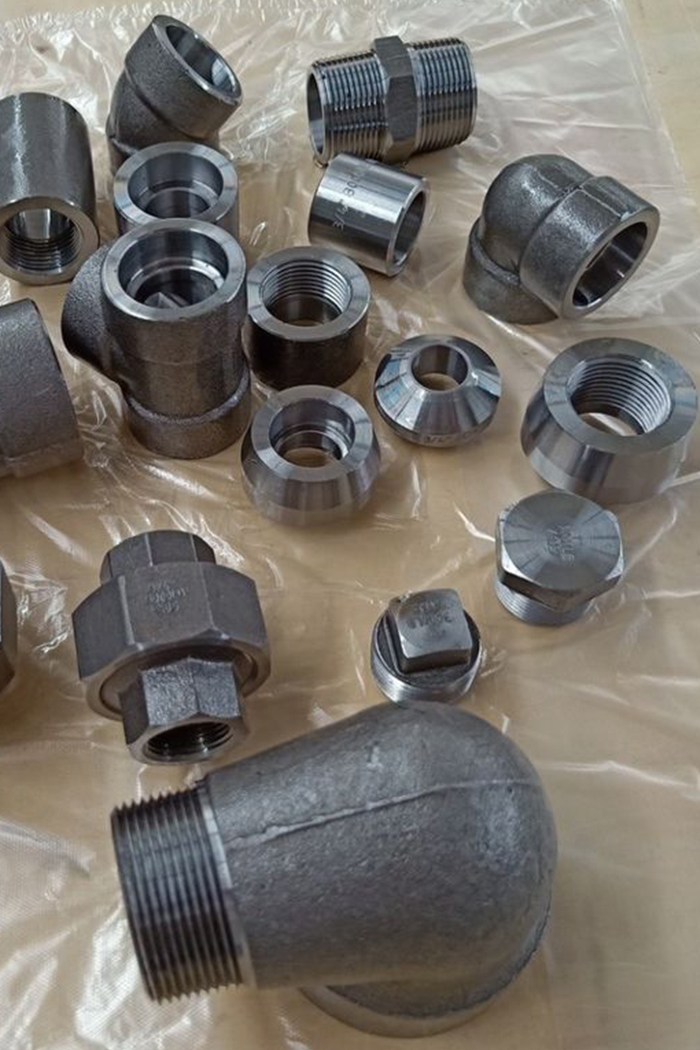

Types of Nickel Alloy 200 Forged Fittings

Manufacturing Types

Threaded Forged Fittings

Designed with internal or external threads, these fittings allow quick assembly and disassembly without welding.
Socket Weld Forged Fittings

These fittings are joined by inserting the pipe into a recessed area of the fitting and welding around it, ensuring strong, leak-proof joints.
Screwed Fittings

Similar to threaded types, screwed fittings are connected using screw threads, making installation simple and cost-effective.
BSPT

Bushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
NPT

End caps are used to seal a pipeline's end, shielding it from impurities and guaranteeing closed systems' safety.

Forms

Forged Elbow

Elbows, which come in 45° and 90° varieties shift the direction of flow with little pressure loss.
Forged Bushing

Bushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
Forged Tee

Used to split or combine flow across three directions essential for branching pipeline.
Forged Coupling

Offer a safe connection between two pipes; threaded and socket-welded options are available.
Forged Plug

Close open pipe ends which are frequently used for isolation or testing.
Forged Cross

With four openings, cross fittings help connect four pipes used when fluid distribution needs to occur in multiple directions.

Contact Midland Alloys Inc. for Your Nickel Alloy 200 Forged Fittings Needs

Contact us today to discuss how Nickel Alloy 200 Forged Fittings can benefit your application. Whether you need guidance in selecting the right pipes or have specific requirements, our team of experts is here to help you find the optimal solution.

Technical Details & Delivery Condition

Chemical Composition of Nickel Alloy 200 Forged Fittings

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 200	0.15 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Mechanical Properties of Nickel Alloy 200 Forged Fittings

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Nickel Alloy 200 Forged Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel 200	2.4066	N02200	NW 2200	NA 11	НП-2	N-100M	Ni 99.2

Nickel Alloy 200 Forged Fittings Grades We Offer

Nickel Alloy Forged Fittings

Nickel Alloy 200 Forged Fittings

Nickel Alloy 201 Forged Fittings

Socket Weld Fittings Dimensions

Threaded Fittings Dimensions

Tolerance Chart

Socket Weld Fittings Dimensions

Threaded Fittings Dimensions

Tolerance Chart

Manufacturing Process of Nickel Alloy 200 Forged Fittings

Raw Material

Cutting

Sizing

Heat Treatment

Pickling

Beveling

Polishing

Sand Blasting

Pickling / Passivating

Inspection

Analytic

Marking

Packing & Shipping

Applications of ASME SB564 UNS N02200 Fittings

Many industries that require long service life, dimensional accuracy, and high corrosion resistance rely on ASME SB564 UNS N02200 fittings. The oil and gas and petrochemical industries make extensive use of these forged nickel pipe fitting to handle aggressive media. In chemical processing plants, their resistance to alkalis ensures safe fluid transfer. Nickel 200 seamless forged fittings are preferred by the food processing and pharmaceutical industries due to their non-contaminating qualities and purity. These fittings are used in bleaching equipment and heat exchangers in the pulp and paper and power generation industries, and their resistance to temperature and pressure is advantageous in the aerospace and refining industries. These fittings are also essential in water treatment systems requiring durable, corrosion-resistant joints.

Offshore Industry

Nuclear Industries

Refineries

Ship Building

Aerospace

Pharmaceutical

Why Choose Us for UNS N02200 Forged Fittings

To guarantee faultless performance in every fitting, we adhere to ASTM B564, ASME SB564, and EN standards while following strict ISO-certified procedures. We offer full customization on end connections, sizes, wall thickness (Schedule 40 to Schedule 160), surface finishes, and cut-to-length services. We supply both bulk and project-specific orders, and we have a wide reach throughout the Gulf, Europe, Southeast Asia, and Africa. In addition to third party inspections, all products go through internal testing which includes PMI, hydro and mechanical tests. We offer mill test certificates (MTCs) attesting to mechanical and chemical compliance. Our packaging and marking adhere to international logistics standards, guaranteeing fast and secure delivery. For ASME B16.11 nickel 200 forged fittings that are tested and packed to the highest standards you can rely on us to establish enduring relationships via excellence, openness and dedication.

FAQs – Nickel Alloy 200 Forged Fittings

What are the common types of Nickel 200 forged fittings available?

According to ASME B16.11 standards, common types include elbows, tees, reducers, unions, crosses, couplings, and nipples. They come in both socket weld and threaded varieties.

What pressure ratings are available for forged Nickel 200 pipe fittings?

We supply fittings in Class 2000, 3000, and 6000, depending on connection type and size. Class 3000 nickel 200 socket weld fittings are among the most widely used for high-pressure lines.

Are Nickel 200 forged fittings suitable for cryogenic services?

Yes, due to their excellent toughness and low-temperature ductility, Nickel UNS N02200 forged fittings perform reliably in cryogenic conditions.

What is the threaded fitting size range for UNS N02200?

The standard size range for UNS N02200 threaded fittings is 1/8″ to 4″ NPS, though custom sizing is possible upon request.

How does Nickel 200 perform in food-grade or sanitary applications?

Due to its high purity (99% Ni min), Nickel 200 is non-toxic and suitable for food-grade applications, especially in evaporators, filters, and brewing equipment.

What is the typical Nickel 200 forged fittings price per kg in India?

Size, connection type, and quantity all affect price, but the average price per kilogram of nickel 200 forged fittings varies from ₹2,500 to ₹3,800 contingent on order volume and market conditions.

Are these fittings compatible with international piping systems?

Yes, our fittings conform to ASTM B564, ASME B16.11, MSS SP‑79/83/95/97, and BS3799 standards, ensuring compatibility across global piping systems.

Nominal Size		Socket Bore Dia	Bore Dia of Fittings			Socket Wall Thickness						Body Wall			Depth of Socket	Center to Bottom of Socket
D N	NPS	B	D			C						Gmin			J min	A
			3000	6000	9000	3000		6000		9000		3000	6000	9000		90° Elbow Tee Cross			45° Elbow
			3000	6000	9000	ave	min	ave	min	ave	min	3000	6000	9000		3000	6000	9000	3000	6000	9000
6	1/8	10.9	6.1	3.2		3.18	3.18	3.96	3.43			2.41	3.15		9.5	11.0	11.0		8	8
8	1/4	14.3	8.5	5.6		3.78	3.30	4.60	4.01			3.02	3.68		9.5	11.0	13.5		8	8
10	3/8	17.7	11.8	8.4		4.01	3.50	5.03	4.37			3.20	4.01		9.5	13.5	15.5		8.0	11.0
15	1/2	21.9	15.0	11	5.6	4.67	4.09	5.97	5.18	9.53	8.18	3.73	4.78	7.47	9.5	15.5	19.0	25.5	11	12.5	15.5
20	3/4	27.3	20.2	14.8	10.3	4.90	4.27	6.96	6.04	9.78	8.56	3.91	5.56	7.82	12.5	19.0	22.5	28.5	13	14	19
25	1	34	25.9	19.9	14.4	5.69	4.98	7.92	6.93	11.38	9.96	4.55	6.35	9.09	12.5	22.5	27.0	32.0	14.0	17.5	20.5
32	1-1/4	42.8	34.3	28.7	22.0	6.07	5.28	7.92	6.93	12.14	10.62	4.85	6.35	9.70	12.5	27.0	32.0	35.0	17.5	20.5	22.5
40	1-1/2	48.9	40.1	33.2	27.2	6.35	5.54	8.92	7.8	12.70	11.12	5.08	7.14	10.15	12.5	32.0	38.0	38.0	20.5	25.5	25.5
50	2	61.2	51.7	42.1	37.4	6.93	6.04	10.92	9.5	13.84	12.12	5.54	8.74	11.07	16.0	38.0	41.0	54.0	25.5	28.5	28.5
65	2-1/2	73.9	61.2			8.76	7.62					7.01			16.0	41.0			28.5
80	3	89.9	76.4			9.52	8.30					7.62			16.0	57.0			32.0
100	4	115.5	100.7			10.69	9.35					8.56			19.0	66.5			41.0

Nominal Size		Center-to-End						Outside Diameter of Band			Wall Thickness			Length of Thread
DN	NPS	A						H			G min			min	mim
		90° Elbows, Tees, Crosses			45° Elbows			H			G min
		2000	3000	6000	2000	3000	6000	2000	3000	6000	2000	3000	6000
6 8 10	1/8 1/4 3/8	21 21 25	21 25 28	25 28 33	17 17 19	17 19 22	19 22 25	22 22 25	22 25 33	25 33 38	3.18 3.18 3.18	3.18 3.30 3.51	6.35 6.60 6.98	6.4 8.1 9.1	6.7 10.2 10.4
15 20 25	1/2 3/4 1	28 33 38	33 38 44	38 44 51	22 25 28	25 28 33	28 33 35	33 38 46	38 46 56	46 56 62	3.18 3.18 3.68	4.09 4.32 4.98	8.15 8.53 9.93	10.9 12.7 14.7	13.6 13.9 17.3
32 40 50	1-1/4 1-1/2 2	44 51 60	51 60 64	60 64 83	33 35 43	35 43 44	43 44 52	56 62 75	62 75 84	84 102	3.89 4.01 4.27	5.28 5.56 7.14	10.59 11.07 12.09	17.0 17.8 19.0	18.0 18.4 19.2
65 80 100	2-1/2 3 4	76 86 106	83 95 114	95 106 114	52 64 79	52 64 79	64 79 79	92 109 146	102 121 152	121 146 152	5.61 5.99 6.55	7.65 8.84 11.18	15.29 16.64 18.67	23.6 25.9 27.7	28.9 30.5 33.0

Minimal Diam.		Outer Dia. For Bevel End	Inner Dia. For End	Elbow		Tee		Reducer	Cap	180° Elbow
DN	NPS			A	B	C	M	H	E	O	K	Roughness
500-600	20-24	+6.4/-4.8	4.8	3.2	3.2	3.2	3.2	4.8	9.6	–	–	–
650-750	26-30
				4.8	4.8	4.8	4.8
800-1200	32-48
1250-1500	50-60	+9.6/-6.4	6.4	9.6	9.6	9.6	9.6	9.6	–
1550-1750	62-70	+12.7/-9.6	9.6	12.7	12.7	–
1800-2000	72-80	+16/-12	12	16	16
15-65	1/2-2 1/2	+1.6/-0.8	0.8	1.6	1.6	1.6	1.6	1.6	3.2	6.4	6.4	0.8
80-100	3-4	1.6	1.6						6.4
125-200	5-8	+2.4/-1.6
250-450	10-18	+4/-3.2	3.2	2.4	2.4	2.4	2.4	2.4		9.6
