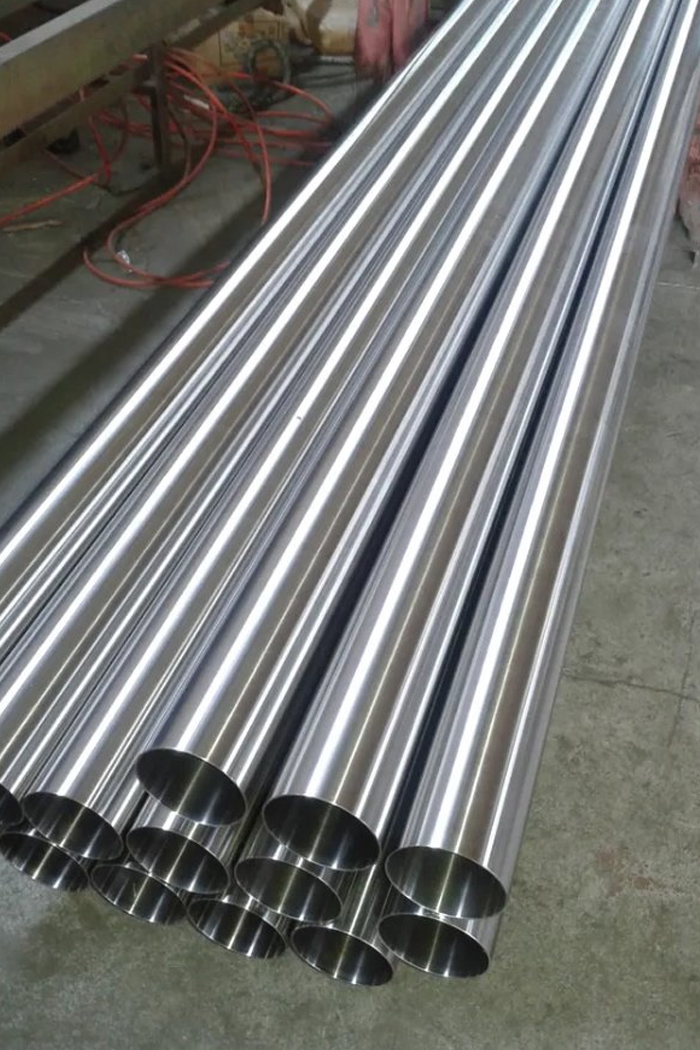

Monel K500 Pipes Manufacturer

Midland Alloys Inc. is a trusted Manufacturer and Supplier of Monel K500 Pipes, offering high-performance piping solutions engineered for strength and resistance in demanding conditions. Monel K500 pipe fittings commonly include elbows, tees, crosses, reducers, caps, and stub ends designed to meet various system configurations. Due to the high copper and nickel content of the alloy, enhanced with aluminum and titanium, Monel K500 resists oxidation at high temperatures, including localized attacks like pitting and crevice corrosion. These pipes maintain mechanical properties at temperatures up to 1000°F (538°C), which makes them dependable at high-pressure and high-temperature conditions. Seamless, welded, ERW, and fabricated forms are available in all of the above, meeting ASTM/ASME standards, and they find application in most industrial needs. Supported by ISO certification and available with ready stock, Midland Alloys Inc. ensures global distribution along with full documentation, traceability, and export packaging.

What is Monel K500 Pipes?

Monel K500 Pipes are tubular components made of nickel-copper alloy that have been strengthened and hardened by adding trace amounts of titanium and aluminum. These pipes are designed to be used where mechanical performance as well as resistance to harsh environments is essential. Monel K500 Pipes function effectively in reducing and oxidizing media, providing reliable service over a wide range of temperatures. They meet specifications like ASTM B165 / ASME SB165 for seamless pipes, and ASTM B725, B730 / ASME SB725, SB730 for welded types. Precision and durable industries extensively use Monel K500 Pipes due to their stable dimensions and excellent pressure-handling abilities, even under stringent conditions.

Advantages of Monel K500 Pipes

Monel K500 Pipes offer reliable performance in fluctuating thermal and chemical conditions.

Oxidation and Carburization Resistance: Resists high-temperature oxidizing and carburizing environments.
Non-Magnetic: It does not lose its non-magnetic properties despite treatment through aging.
Good Weldability and Fabricability: Can be welded and shaped with regular welding and forming operations without cracking.
High-Temperature Performance: Maintain mechanical stability until 1000°F (538°C).
Thermal and Pressure Tolerance: Designed for use in high pressure with good thermal resistance.

Specification of Monel K500 Pipes

These pipes are engineered under strict guidelines, ensuring compliance with global standards like ASTM B165 / B725 / B730 and ASME equivalents. Available in custom diameters, schedules, and lengths to suit diverse industries.

Types of Monel K500 Pipes

There are several types of Monel K500 pipes to meet diverse project, installation, and pressure requirements. ERW pipes ensure dimensional precision, welded pipes are appropriate for low-pressure applications, seamless pipes offer superior strength and resistance to pressure, and fabricated pipes are specially designed to meet particular requirements. In addition to these, Monel K500 pipe fittings provide structural stability, effective fluid flow, and robust connections in systems subjected to corrosion and pressure.

Manufacturing Types

Seamless Pipe

Featuring a clean interior finish and a consistent structure, this pipe is made by hot extrusion or rotary piercing without the need for welds.
Welded Pipe

Fabricated from Monel sheets or coils, these pipes have a longitudinal seam, and are ideal for general use systems.
ERW Pipe

Cold-formed and joined using electric resistance welding, this type provides a cost-effective welded solution with consistent quality.
Cold Drawn Pipe

These pipes are appropriate for instrumentation and precision applications and are drawn through a die for precise dimensional control.
Hot Finished Pipe

Produced at high temperatures, this type is ideal for thicker walls and heavy-duty operations needing added strength.

Pipe Forms

Round Pipe

The most common shape, round Monel K500 pipes are used in standard fluid, gas, and structural lines.
Square Pipe

Offers clean lines for structural frames or visible piping where design and alignment matter.
Rectangular Pipe

Used when space is limited or where piping must fit into narrow channels or enclosures.
Capillary Pipe

A highly precise fine-bore pipe that is perfect for laboratories, control lines, and equipment.
Schedule Types

Available in SCH 5S, SCH 10S, SCH 40S, and more, depending on required wall thickness and pressure rating.

Contact Midland Alloys Inc. for Your Monel K500 Pipes Needs

Contact us today to discuss how Monel K500 Pipes can benefit your application. Whether you need guidance in selecting the right pipes or have specific requirements, our team of experts is here to help you find the optimal solution.

Technical Details & Delivery Condition

Chemical Composition of Monel K500 Pipes

Monel K500 is primarily a nickel-copper alloy, with the addition of aluminum and titanium for precipitation hardening. This precise composition enhances strength while preserving resistance to marine and chemical environments.

Grade	Ni	Cu	Al	Ti	Fe	C	Mn	S	Si
Monel K500	63.0 min	27.0 – 33.0	2.30 – 3.15	0.35 – 0.85	2.0 max	0.25 max	1.5 max	0.01 max	0.50 max

Mechanical Properties of Monel K500 Pipes

Monel K500 Pipes have a high tensile strength, yield strength, and good elongation, which provides endurance under load-bearing and high-stress applications.

Density	Melting Point	Tensile Strength	Yield Strength (0.2% Offset)	Elongation	Hardness, Rockwell
8.44 g/cm³	1350 – 1380 °C	110 ksi (758 MPa)	80 ksi (552 MPa)	20 %	RB 95

Monel K500 Pipes Equivalent Grades

Monel K500 pipes are equivalent to a number of international standards. These equivalents provide interchangeability and conformance for various procurement and engineering specifications.

STANDARD	WERKSTOFF NR.	UNS	BS	GOST	AFNOR	JIS
Monel K500	2.4375	N05500	NA 18	—	—	NW 5500

Monel Pipes Grades We Offer

Monel Pipes

Monel 400 Pipes

Monel K500 Pipes

Pipe Dimensions

Weight Chart

Pipe Dimensions

Monel K500 Pipe Dimensions

Nominal size [inches]	Outside diameter (OD) [inches]	Outside diameter (OD) [mm]	Wall thickness [inches]	Wall thickness [mm]	Weight [lb/ft]	Weight [kg/m]
1/8″ NPS 6	0.41	10.3	0.068	1.73	0.24	0.37
1/4″ NPS 8	0.54	13.7	0.088	2.24	0.42	0.63
3/8″ NPS 10	0.68	17.1	0.091	2.31	0.57	0.84
1/2″ NPS 15	0.84	21.3	0.109	2.77	0.85	1.27
3/4″ NPS 20	1.05	26.7	0.113	2.87	1.13	1.69
1″ NPS 25	1.32	33.4	0.133	3.38	1.68	2.5
1 1/4″ NPS 32	1.66	42.2	0.14	3.56	2.27	3.39
1 1/2″ NPS 40	1.9	48.3	0.145	3.68	2.72	4.05
2″ NPS 50	2.375	60.3	0.154	3.91	3.65	5.44
2 1/2″ NPS 65	2.875	73.0	0.203	5.16	5.79	8.63
3″ NPS 80	3.5	88.9	0.216	5.49	7.58	11.29
3 1/2″ NPS 90	4.0	101.6	0.226	5.74	9.11	13.57
4″ NPS 100	4.5	114.3	0.237	6.02	10.79	16.07
5″ NPS 125	5.563	141.3	0.258	6.55	14.62	21.77
6″ NPS 150	6.625	168.3	0.28	7.11	18.97	28.26
8″ NPS 200	8.625	219.1	0.322	8.18	28.55	42.55
10″ NPS 250	10.75	273.0	0.365	9.27	40.48	60.31
12″ NPS 300	12.75	323.8	0.406	10.31	53.52	79.73
14″ NPS 350	14.0	355.6	0.437	11.13	54.57	94.55
16″ NPS 400	16.0	406.4	0.5	12.7	82.77	123.3
18″ NPS 450	18.0	457.0	0.562	14.27	104.67	155.8
20″ NPS 500	20.0	508.0	0.594	15.09	123.11	183.42
24″ NPS 600	24.0	610.0	0.688	17.48	171.29	255.41
32″ NPS 800	32.0	813.0	0.688	17.48	230.08	342.91

Weight Chart

Manufacturing Process of Monel K500 Pipes

The production of Monel K500 Pipes starts with the selection of high-purity raw materials, which includes mainly nickel, copper, aluminum and titanium. These raw materials are heated and alloyed in electrical furnaces to produce ingots, or billets. The billets are hot, or cold-formed into pipe shapes by extrusion or rolling. After forming, the pipes undergoes solution annealing and age-hardening to meet the required strength and mechanical qualities. Finishing on the surface is done using pickling or polishing, depending on use. Lastly all pipes go through intense dimensional inspections, hydrostatic testing, and non-destructive testing in order to meet standards and customer requirements.

Round Bar

Analytic

Cut to Length

Centering

Heating

Perforation

Inspection of Size

Pickling

Inspection of Surface

Lubricating

Cold Drawing (Cold Rolling)

Degreasing

Annealing

Straightening

Cut

Pickling / Passivating

Inspection

Analytic

Marking

Packing & Shipping

Industrial Applications for Monel K500 Pipes

In industries where systems are subjected to pressure, heat, and corrosive conditions, Monel K500 pipes are extensively utilised. Due to their exceptional resistance to adverse circumstances, it is frequently utilised in sour gas service lines, risers, and offshore platforms in the oil and gas industry. These pipes are used in pump parts, propeller shafts, and seawater systems in marine engineering, where resistance to corrosion from saltwater is crucial. Installed in reactors, storage tanks, and fluid transfer lines, they are also essential components of chemical processing facilities. Due to their strength and ability to withstand high temperatures, Monel K500 pipes are utilised in boiler feedwater systems and heat exchangers in power generation. It is also used in structural elements and turbine engine parts in the aerospace industry, and in pipe systems that need to be radiation-resistant and structurally sound in the nuclear industry. In crucial processes where safety and efficiency cannot be sacrificed, these pipes provide reliable service.

Offshore Industry

Nuclear Industries

Refineries

Ship Building

Aerospace

Pharmaceutical

Our Global Export Destinations

Why Choose Midland Alloys Inc.

Midland Alloys Inc. is an ISO-certified Monel K500 Pipes manufacturer that provides global supply with timely delivery. We offer custom-fabricated pipes in different finishes and sizes. Our team ensures full material traceability and round-the-clock customer support. Supported by extensive project supply experience, we supply industries worldwide as a trusted Monel K500 global supplier and exporter.

Frequently Asked Questions About Monel 500 Pipes

Are Monel K500 Pipes applicable to marine applications?

Yes, Monel K500 Pipes provide superior resistance to seawater and are commonly employed in marine systems.

Can Monel K500 Pipes be welded?

Yes, Monel K500 Pipes are weldable with ease with standard nickel-alloy welding processes.

Products Categories

ISO Certificate

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383
