Hastelloy B2 Tubes Manufacturer
- Home
- Steel Tubes
- Hastelloy B2 Tubes

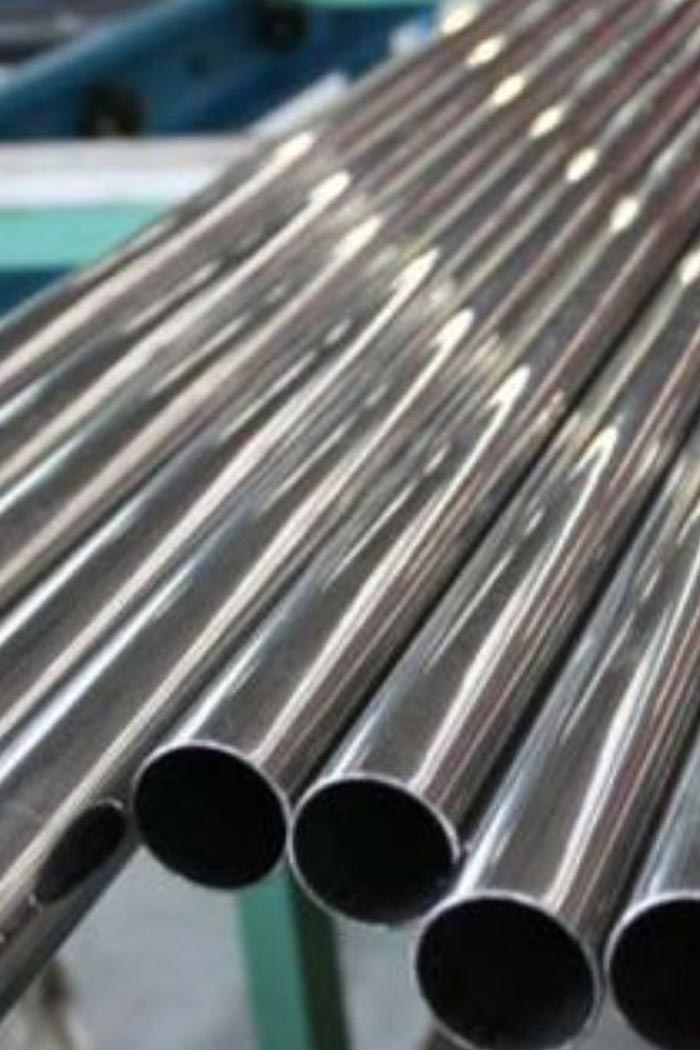

Midland Alloys Inc. is a trusted Indian manufacturer and global supplier of Hastelloy B2 Tubes, delivering precision-engineered solutions to meet critical industry needs. These tubes are made from nickel-molybdenum alloy Hastelloy B2, known for its exceptional resistance to hydrochloric acid and other aggressive reducing media. Hastelloy B2 Tubes, commonly known as B-2 Hastelloy® Alloy Tubing, possess good mechanical strength in the weld and annealed condition. They possess good corrosion resistance due to stress corrosion cracking and uniform corrosion and they have good ductility. With a chemical composition containing high concentrations of nickel (around 69%) and molybdenum (around 28–30%), they are compatible with ASTM B622 N06022 Hydraulic Tube specifications. Their mechanical properties include a minimum tensile strength of 690 MPa, yield strength of 310 MPa, and elongation of 40% in 50 mm. The reduction of area typically exceeds 40%, making them reliable for harsh service conditions. We produce and provide Hastelloy B2 Seamless Tubes, B2 Hastelloy Rectangular Tubes, Hastelloy B2 werkstoff nr. 2.4617 Seamless Tubes, and ASME SB 622 Hastelloy B2 Welded Tubing with close dimensional tolerances and surface finish.
Benefits of Hastelloy B2 Tubes
ASTM B622 N06022 Hydraulic Tube constructed of Hastelloy B2 provides excellent endurance, resistance to corrosion and long term performance in reducing conditions. These properties make the tubes ideal for demanding chemical and industrial environments.
- Outstanding resistance to strong reducing agents and hydrochloric acid
- Higher strength retention when subjected to high temperature and pressure
- Can be welded without fear of grain-boundary carbide precipitation
- Suitable for several forming and fabrication techniques
- It is stable in chemical, nuclear and marine industries
- These tubes have a long operational life and require little maintenance.
- Cost-effective in applications requiring high critical service owing to long-term integrity
- Available in coiled, round and rectangular shapes that can be customized
Hastelloy B2 Tubes Specifications
Seamless Tube OD : 1/8 -12" NPS
Welded Tube OD : 6.00 mm OD up to 914.4 mm OD
EFW Tube Size : 3.35 mm OD To 101.6 mm OD
ASTM B622, B626 / ASME SB622, SB626
Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Round, Square, Rectangular, Hydraulic Etc
Single Random, Double Random, Standard & Cut length Tube
Plain End, Beveled End, Treaded Tube
SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements
Contact us today to discuss how Hastelloy B2 Tubes can benefit your application. Whether you need guidance in selecting the right Tubes or have specific requirements, our team of experts is here to help you find the optimal solution.
Technical Details & Delivery Condition
| Element | Alloy B2 |
| C | 0.02 max |
| Mn | 1.00 max |
| Si | 0.1 max |
| S | 0.03 max |
| Co | 1.0 max |
| Ni | Balance |
| Cr | 1.0 max |
| Fe | 2.0 max |
| Mo | 26 – 30 |
| P | 0.04 max |
| Element | Hastelloy Alloy B2 |
| Density | 9.2 g/cm3 |
| Melting Point | 1370 °C (2500 °F) |
| Tensile Strength | Psi – 51000 , MPa – 350 |
| Yield Strength (0.2%Offset) | Psi – 1,10,000 , MPa – 760 |
| Elongation | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy B2 | 2.4617 | N10665 |
Difference Between Hastelloy B2 Tubes vs Hastelloy C276 Tubes
Hastelloy B2 Tubes are specifically designed to withstand harsh reducing conditions, particularly hydrochloric acid, at all temperatures and concentrations. On the other hand, Hastelloy C276 Tubes provide better resistance when mixed with acid and oxidizing environments, as they contain a higher proportion of chromium. Though Hastelloy B2 contains a higher percentage of molybdenum, it doesn’t contain enough chromium to resist oxidizers and hence is not as versatile in mixed chemical environments. Hastelloy C276 is more suitable for varied chemical processing applications due to its balanced resistance to both oxidizing and reducing agents. In terms of fabrication, both alloys are weldable, but B2 requires more controlled heat input and cooling to avoid thermal cracking.
Hastelloy Tubes Grades We Offer
Round Bar
Analytic
Cut to Length
Centering
Heating
Perforation
Inspection of Size
Pickling
Inspection of Surface
Lubricating
Cold Drawing (Cold Rolling)
Degreasing
Annealing
Straightening
Cut
Pickling / Passivating
Inspection
Analytic
Marking
Packing & Shipping
Applications of Hastelloy B2 Seamless Tubes
Hastelloy B2 Seamless Tubes are highly valued in industries where corrosion caused by aggressive chemical conditions poses a significant challenge. They are commonly used in chemical processing facilities to safely handle acids such as sulfuric, acetic, and hydrochloric. These tubes are used in the pharmaceutical industry in reactors and heat exchangers in which purity and anti-corrosive resistance are critical. Petrochemical refineries use these tubes for sour gas piping, pressure vessel and condensers. They are used to prevent corrosion due to chlorine dioxide and other bleaching agents in the pulp and paper industry. Hastelloy B2 DIN 2.4617 Round Tubing is also used in the marine engineering industry. The alloy’s strength and thermal stability also make it suitable for use in waste treatment systems, fertilizer production, and nuclear fuel reprocessing.
Why Choose Midland Alloys Inc. for Hastelloy B2 Tubes
As an ISO-certified company, Midland Alloys Inc. ensures a premium supply of Hastelloy B2 UNS N10665 tubes. Being a well-known manufacturer and exporter of high-quality Hastelloy B2 UNS N10665 tubes from India, we are known for our ASTM/EN consistency and meticulous processing. We provide customization facilities like cut-to-length, special schedules, end finish, and surface treatments. Our international export network covers the Gulf, Europe, Africa and Southeast Asia to provide immediate supply to project locations across the globe. We conduct strict in-house testing of all products, include mill test certifications and ensure, that they can be verified through third-party inspection. Timely delivery, project support, and smooth handling of bulk and small export orders is assured by our team. With a focus on long-term reliability, we offer quality assurance and forge lasting partnerships built on trust. Werkstoff Nr 2.4617 Welded Tubing and other variants are marked per ASTM/ASME standards, and shipped with MTCs verifying full chemical and mechanical conformity.
Frequently Asked Questions (FAQs)
The Hastelloy B2 cost varies based on size, schedule, shape (such as seamless or welded), and quantity. Market rates fluctuate based on raw material costs. For the most current rates, get in touch with Midland Alloys Inc.
B2 is an alloy of nickel and molybdenum that is generally used to withstand reducing agents like hydrochloric acid. It provides good corrosion resistance, particularly in non-oxidizing environments, and is characterized by its mechanical stability at stress.
In chemical and high temperature environments, Hastelloy typically has a better performance than stainless steel. It provides greater resistance to chemical attack, particularly in reducing media and is consequently more appropriate for niche industrial uses.
