Hastelloy C276 Tubes Manufacturer
- Home
- Steel Tubes
- Hastelloy C276 Tubes

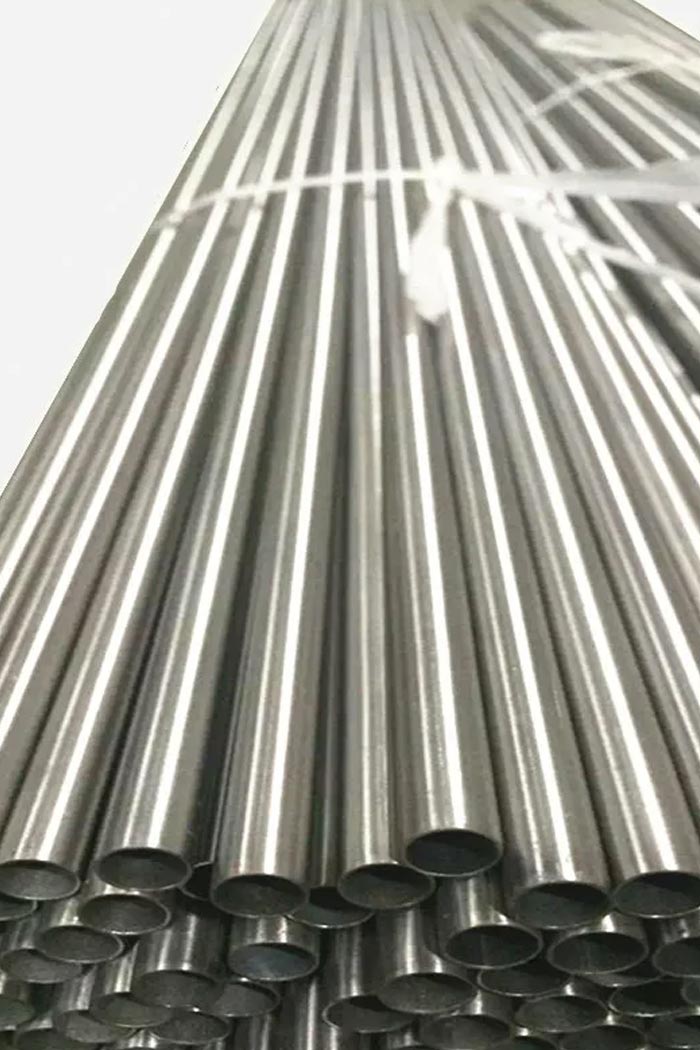

Midland Alloys is a leading manufacturer and supplier of hastelloy C276 tubes, known for providing high-quality tubing solutions. Hastelloy C276 tubes are made of a nickel-molybdenum-chromium alloy with tungsten, which is highly resistant to pitting and crevice corrosion. Alloy C276 tubing is known for its versatility and excellent fabricability, and it meets ASTM/ASME B622 and B619 specifications. We offer Hastelloy C276 Seamless Tube (OD:.125-1″, wall:.010-.065″, length: up to 12 m) and Alloy C276 Welded Tube (OD: 6.35-114.3 mm, wall: 0.8-12.7 mm, length: up to 26 m). UNS N10276 tubing is available in custom sizes, grades, and dimensions to meet a variety of project needs, with plain, threaded, or bevel ends.
Key Benefits of Hastelloy C276 Tubes
Alloy C276 Tube offers durability in extreme environments. Following are its unique features:
- High strength with 355 MPa yield and 790 MPa tensile strength.
- Stays stable up to 1038 °C, resisting oxidation and thermal damage.
- The density of 8.89 g/cm³ ensures mechanical reliability in high-pressure systems.
- Maintains corrosion resistance even when exposed to strong oxidizers and reducing agents.
- withstands harsh chemical processing and chloride-rich environments.
- Excellent weldability for complex, precision-engineered assemblies.
- Custom shapes are available, such as hastelloy UNS N10276 square tube.
Hastelloy C276 Tubes Specifications
Seamless Tube OD : 1/8 -12" NPS
Welded Tube OD : 6.00 mm OD up to 914.4 mm OD
EFW Tube Size : 3.35 mm OD To 101.6 mm OD
ASTM B622, B626 / ASME SB622, SB626
Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Round, Square, Rectangular, Hydraulic Etc
Single Random, Double Random, Standard & Cut length Tube
Plain End, Beveled End, Treaded Tube
SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements
Contact us today to discuss how Hastelloy C276 Tubes can benefit your application. Whether you need guidance in selecting the right Tubes or have specific requirements, our team of experts is here to help you find the optimal solution.
Technical Details & Delivery Condition
| Element | Alloy C276 |
| C | 0.010 max |
| Mn | 1.00 max |
| Si | 0.08 max |
| S | 0.03 max |
| Co | 2.50 max |
| Ni | 50.99 min* |
| Cr | 14.50 – 16.50 |
| Fe | 4.00 – 7.00 |
| Mo | 15.00 – 17.00 |
| P | 0.04 max |
| Element | Hastelloy Alloy C276 |
| Density | 8.89 g/cm3 |
| Melting Point | 1370 °C (2500 °F) |
| Tensile Strength | Psi – 1,15,000 , MPa – 790 |
| Yield Strength (0.2%Offset) | Psi – 52,000 , MPa – 355 |
| Elongation | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | – | ХН65МВУ | ЭП760 | NiMo16Cr15W |
Uses of Hastelloy Alloy Tubes
Hastelloy C276 tubes are used in industries that face extreme chemical and environmental challenges. They are essential in pollution control systems, marine engineering and heat exchanger units due to their durability and dependability. They are referred to as Nickel Alloy C276 Bourdon Tubes in instrumentation, ASTM B619 N10276 Capillary Tubes in analytical equipment, and DIN 2.4819 Furnace Tubes in high-temperature applications. Alloy C276 Gas Tubes are used for chemical transfer, C276 Hastelloy Condenser Tubes for cooling systems, and Nicrofer® 5716 Hydraulic Tubing in critical hydraulic controls.
Hastelloy Tubes Grades We Offer
Hastelloy C276 vs C22 Tubes
Hastelloy C276 Tubes offer better resistance to a wide range of strong oxidizers and wet chlorine compared to Hastelloy C22 Tubes. Alloy C276 withstand chemical environments due to its tungsten content, making it more versatile. C22 has better formability and is preferred for applications with moderate corrosion demands, while C276 is the go-to for highly aggressive chemical exposures.
Round Bar
Analytic
Cut to Length
Centering
Heating
Perforation
Inspection of Size
Pickling
Inspection of Surface
Lubricating
Cold Drawing (Cold Rolling)
Degreasing
Annealing
Straightening
Cut
Pickling / Passivating
Inspection
Analytic
Marking
Packing & Shipping
Applications of Hastelloy Tubes
Why Choose Midland Alloys Inc. for Hastelloy C276 Tubing
Midland Alloys Inc. is a reputable Hastelloy C276 Tube supplier known for its consistent quality and dependability. Our tubes are ISO 9001:2015, PED 2014/68/EU, and EN 10204 3.1/3.2 certified, with full support for third-party inspections by TÜV, BV, SGS, and DNV. We serve engineering firms, EPC contractors, chemical plants, and marine operators worldwide. Each tube undergoes in-house and third-party testing, including hydrostatic, ultrasonic, radiographic, and PMI testing, as well as mechanical tests for tensile, hardness, and bend performance. Our team ensures timely deliveries, clear documentation, and support, resulting in repeat business throughout the Middle East, Europe, and Southeast Asia.
FAQs
C276 offers far superior corrosion resistance and higher temperature stability than 316, especially in strong oxidizers.
ASTM B622 for seamless tubes and ASTM B619 for welded tubes.
Prices usually range from ₹2,500 to ₹5,500 per kg depending on size, wall thickness, and order quantity.
They withstand oxidation up to 1038 °C and perform reliably in both high and sub-zero conditions.
