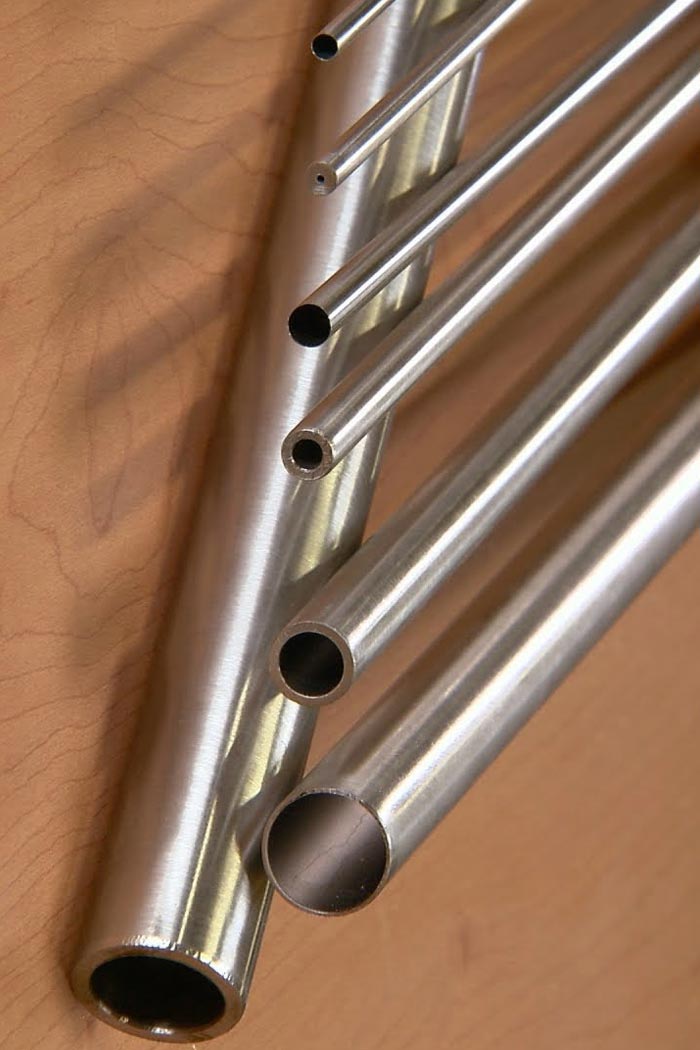

Midland Alloys Inc. is a trusted Indian manufacturer and global supplier of stainless steel pipes and advanced nickel alloys, including Monel K500 Tubes. Offered in seamless, welded, and cold-drawn forms, these tubes are made from nickel-copper alloy UNS N05500, strengthened through precipitation hardening with aluminum (2.30–3.15%) and titanium (0.35–0.85%). The alloy further includes nickel (63.0% min), copper (27.0–33.0%), iron (2.0% max), carbon (0.25% max), manganese (1.5% max), and silicon (0.5% max), providing the tubes with great corrosion resistance, high tensile strength, and non-magneticity even at subzero temperatures. The tubes have a minimum tensile strength of 965 MPa, yield strength of 690 MPa, and elongation of 20%, making them ideal for demanding applications. We maintain ready stock in a wide range of dimensions and wall thicknesses. All Monel K500 Tubes are produced under ISO 9001:2015 certified processes and fully comply with ASTM B163 and ASME SB 163 standards, with reliable traceability and worldwide export capability.
Benefits of Monel K500 Tubes
Monel K500 Tubes provide performance in harsh environments demanding strength, corrosion resistance, and stability. Their distinctive properties qualify them for marine, chemical, and high-pressure service.
- Endures corrosion from sea and chemicals without loss of performance
- High tensile and yield strength for severe service conditions
- Retains hardness at high and cryogenic temperatures
- Provides excellent resistance to stress corrosion cracking
- Non-magnetic in the annealed and hardened condition
- Excellent wear and fatigue resistance in dynamic applications
- Long working life with minimal maintenance requirements
- Versatile to accommodate custom sizes and schedules
Monel K500 Tubes Specifications
Seamless Tube OD : 15″NB TO 150″NB IN
Welded Tube OD : 6.00 mm OD up to 914.4 mm OD
EFW Tube Size : 6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk.
ASTM B 163 ASME SB 163 / ASTM B 165 ASME SB 165
Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Square, Rectangular, Round, etc.
Single Random, Double Random, Cut to length
Screwed, Beveled, Threaded, Plain
SCH XS, SCH 40, SCH 80S, SCH 5, SCH 80, SCH XXS, SCH 160, SCH10, All Schedules
No. 2B - Mill finish/ Matte finish, No.8 - Mirror finish, No. 4 - Brushed finish, Bright, Annealing, Polished, Mirror
Contact us today to discuss how Monel K500 Tubes can benefit your application. Whether you need guidance in selecting the right Tubes or have specific requirements, our team of experts is here to help you find the optimal solution.
Technical Details & Delivery Condition
| Designation | C% | Co% | Cr% | Mo% | Ni% | V% | W% | Ai% | Cu% | Nb/Cb Ta% | Ti% | Fe% | Sonstige Autres-Other % |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Monel 400 | 0.12 | – | – | – | 65.0 | – | – | – | 32.0 | – | – | 1.5 | Mn 1.0 |
| Monel K 500 | 0.13 | – | – | – | 64.0 | – | – | 2.8 | 30.0 | – | 0.6 | 1.0 | Mn 0.8 |
| STANDARD | UNS | EN | AFNOR | WERKSTOFF NR. Equivalents | GOST | JIS | BS |
|---|---|---|---|---|---|---|---|
| Alloy K500 | N05500 | – | – | 2.4375 | – | – | – |
| Alloy 400 | N04400 | NiCu30Fe | NU-30M | 2.4360 | МНЖМц 28-2,5-1,5 | NW 4400 | NA 13 |
| STANDARD | UNS | EN | AFNOR | WERKSTOFF NR. Equivalents | GOST | JIS | BS |
|---|---|---|---|---|---|---|---|
| Alloy K500 | N05500 | – | – | 2.4375 | – | – | – |
| Alloy 400 | N04400 | NiCu30Fe | NU-30M | 2.4360 | МНЖМц 28-2,5-1,5 | NW 4400 | NA 13 |
Monel Tube Grades We Offer
Difference Between Monel K500 Tubes and Monel 400 Tubes
Monel K500 Tubes and Monel 400 Tubes have the same base composition of nickel and copper, but they exhibit considerable differences in mechanical properties and performance because of their differences in microstructure.. Monel K500 is a precipitation-hardened version of Monel 400, achieved by adding controlled amounts of aluminum and titanium, which form finely dispersed particles during heat treatment. This results in Monel K500 having much better tensile and yield strength than Monel 400, thus finding its applications where high-load applications is involved. Although both grades possess very good corrosion resistance in seawater and chemical environments, Monel K500 exhibits higher wear resistance and fatigue strength and retains the non-magnetic characteristics even after hardening. Monel 400, however, is softer, easier to machine, and is used for moderate-strength applications where formability is of greater concern than hardness.
Round Bar
Analytic
Cut to Length
Centering
Heating
Perforation
Inspection of Size
Pickling
Inspection of Surface
Lubricating
Cold Drawing (Cold Rolling)
Degreasing
Annealing
Straightening
Cut
Pickling / Passivating
Inspection
Analytic
Marking
Packing & Shipping
Applications of Monel K500 Tubes
Monel K500 Tubes find extensive application in industries where pressure stability, corrosion resistance, and strength are essential. In the marine industries, they find application in seawater piping, pump shafts, and valve parts. In chemical processing, the tubes withstand acidic and caustic environments in heat exchangers and reaction vessels. In oil and gas industries these tubes find application in tools, downhole equipment, and offshore platforms. Aerospace industries depend on K500 tubes in structural supports and hydraulic lines, power plants use them in condensers and boiler feedwater systems. Their high resistance to mechanical stress and durability makes them useful in defense and heavy engineering applications.
Why Choose Midland Alloys Inc. for Monel K500 Tubes
Midland Alloys, Inc. is a prominent Indian manufacturerand exporter of high-quality N05500 nickel alloy tubes. We are dedicated to precision manufacturing and strict adherence to ASTM, ASME and EN standards. Our ISO certification ensures uniform quality and reliability in each tubes. Our Monel K500 Tubes are offered with wide range of custom options, including cut-to-length fabrication, custom end finishes, special wall thicknesses and surface treatments such as pickling, polishing and passivation. Each tube undergoes in-house hydro, PMI, ultrasonic and hardness testing, accompanied by Mill Test Certificates (MTC) and third-party inspections on request. With effective logistics and export assistance, we ensure timely international delivery, whether for small batches or large industrial projects. Our staff assists clients with technical knowledge, clear documentation, and dedication to long-term, consistent partnerships.
FAQS
Yes, Monel K500 still remains non-magnetic after precipitation hardening, so it is ideal for critical instrumentation and marine applications.
Monel K500 provides superior strength, and corrosion resistance under HPHT conditions, particularly in oilfield, and chemical processing use.
Yes, in order to restore mechanical properties and corrosion resistance following welding, controlled heat treatment is usually advised.
