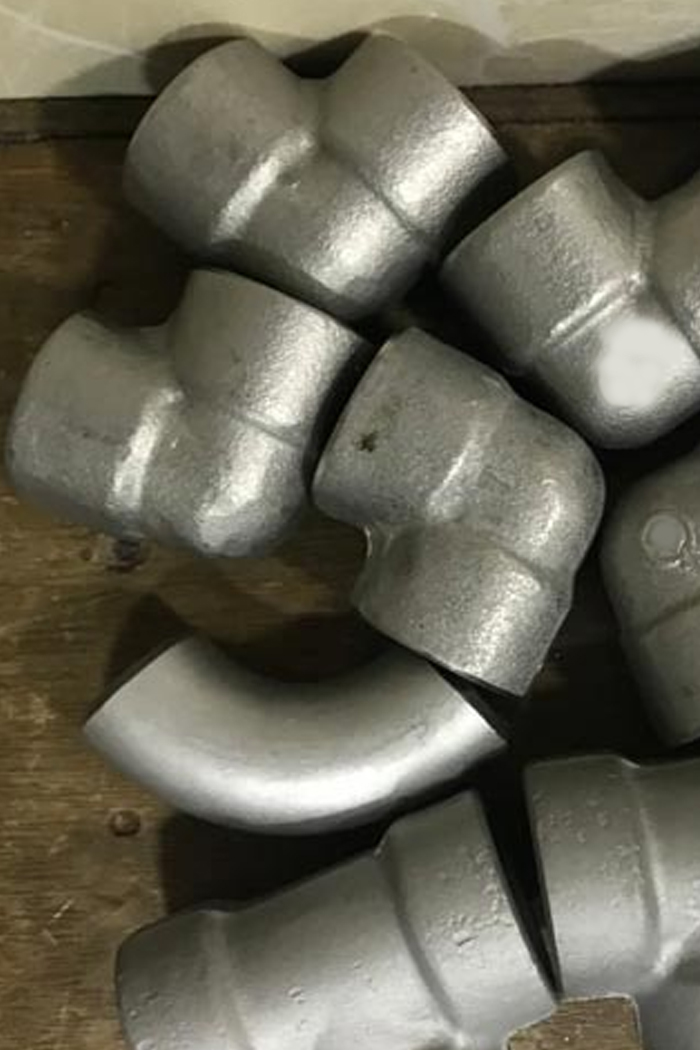

Super Duplex Steel Forged Fittings Manufacturer & Supplier

Super Duplex Stainless Steel (SDSS) is used to forge these parts, which provide increased mechanical strength and resistance to stress corrosion cracking, pitting and crevice corrosion. By utilizing a precision-controlled forging process, we shape elbows, tees, reducers, couplings, unions, caps and crosses to exact standards. Our UNS S32750/S32760 Forged Fittings are perfect for industries with high operational demands because they perform exceptionally well in harsh environments where traditional stainless steels may fail.

Benefits of SDSS Socket Weld Forged Fittings

Super Duplex Steel Forged Fittings offer an outstanding balance of strength, corrosion resistance, and weldability, especially in socket weld configurations used in compact, high-pressure systems. Long-lasting performance in harsh operating conditions is ensured by their dual-phase structure and forged integrity.

Outstanding strength-to-weight proportion for structural soundness
Better resistance to stress corrosion cracking caused by chloride
Efficiency and heat transfer are enhanced by high thermal conductivity.
Under thermal cycling, less distortion results from reduced thermal expansion.
Improved mechanical qualities due to the forging process
A longer service life lowers the cost of upkeep and downtime.
Compatible with international standards like ASME B16.11, ASTM A182 and MSS SP-79/83/95/97

Difference between Super Duplex Steel Forged Fittings and Duplex Steel Forged Fittings

Super Duplex Steel Forged Pipe Fittings, such as SDSS S32760 Forged Pipe Fittings, provide significantly higher yield strength (typically over 550 MPa) compared to standard duplex steel, which offers around 450 MPa. The corrosion resistance in Super Duplex, especially against chlorides and acidic media, exceeds that of Duplex due to its higher alloy content (notably Cr, Mo, and N). Furthermore, in deep-sea and offshore applications where duplex grades might perform poorly Super Duplex Socket Weld Forged Fittings exhibit better performance. Super Duplex has a more balanced phase ratio which improves its toughness and weldability even though both grades have a mixed austenite ferrite structure.

Specification of Super Duplex Steel Forged Fittings

Types of Super Duplex Steel Forged Fittings

Manufacturing Types

Threaded Forged Fittings

Designed with internal or external threads, these fittings allow quick assembly and disassembly without welding.
Socket Weld Forged Fittings

These fittings are joined by inserting the pipe into a recessed area of the fitting and welding around it, ensuring strong, leak-proof joints.
Screwed Fittings

Similar to threaded types, screwed fittings are connected using screw threads, making installation simple and cost-effective.
BSPT

Bushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
NPT

End caps are used to seal a pipeline's end, shielding it from impurities and guaranteeing closed systems' safety.

Forms

Forged Elbow

Elbows, which come in 45° and 90° varieties shift the direction of flow with little pressure loss.
Forged Bushing

Bushings help reduce the bore size in a fitting or valve connection by joining pipes of varying diameters.
Forged Tee

Used to split or combine flow across three directions essential for branching pipeline.
Forged Coupling

Offer a safe connection between two pipes; threaded and socket-welded options are available.
Forged Plug

Close open pipe ends which are frequently used for isolation or testing.
Forged Cross

With four openings, cross fittings help connect four pipes used when fluid distribution needs to occur in multiple directions.

Contact Midland Alloys Inc. for Your Super Duplex Steel Forged
Fittings Needs

Contact us today to discuss how Super Duplex Steel Forged Fittings can benefit your application. Whether you need guidance in selecting the right pipes or have specific requirements, our team of experts is here to help you find the optimal solution.

Duplex & Super Duplex Steel Forged Fittings Grades We Offer

Duplex Steel Forged Fittings

Duplex Steel UNS S31803 Forged Fittings

Duplex Steel UNS S32205 Forged Fittings

Super Duplex Steel Forged Fittings

Super Duplex Steel UNS S32750 Forged Fittings

Super Duplex Steel UNS S32760 Forged Fittings

Socket Weld Fittings Dimensions

Threaded Fittings Dimensions

Tolerance Chart

Socket Weld Fittings Dimensions

Threaded Fittings Dimensions

Tolerance Chart

Manufacturing Process of Super Duplex Steel Forged Fittings

Raw Material

Cutting

Sizing

Heat Treatment

Pickling

Beveling

Polishing

Sand Blasting

Pickling / Passivating

Inspection

Analytic

Marking

Packing & Shipping

Applications of Super Duplex Steel Forged Pipe Fittings

Super Duplex Steel Forged Pipe Fittings find wide application in demanding environments where resistance to mechanical stress and corrosive elements is critical. In the oil and gas sector, they are essential for subsea pipelines, manifolds, and wellhead equipment. They are used in the petrochemical and gas processing industries to handle high-pressure flows and aggressive chemicals. These fittings provide dependable performance in high chloride or high temperature services, are also important in chemical plants, power generation systems and fertilizer manufacturing. Industries like food processing, sugar production, and marine engineering rely on these components for their strength, hygiene, and corrosion resistance.

Offshore Industry

Nuclear Industries

Refineries

Ship Building

Aerospace

Pharmaceutical

Why Choose Us for Super Duplex Socket Weld Forged Fittings

We follow strict compliance with ASTM A182, ASME B16.11, and DIN/ISO Super Duplex Pipe Fittings standards, ensuring dimensional accuracy and material reliability. To satisfy project-specific requirements, our ISO-certified facility offers complete customization, including cut-to-length, unique schedules, end finishes, and surface coatings. With quick shipping and local compliance documentation we serve to customers in Europe, Middle East, Southeast Asia and Africa. With robust in-house testing facilities, Mill Test Certificates (MTCs), and support for third-party inspections, we guarantee traceability and assurance. According to ASTM/ASME standards all ASTM A182 Super Duplex Forged Fittings are properly labeled and come with MTCs attesting to their adherence to dimensional, mechanical and chemical requirements. All ASTM A182 Super Duplex Forged Fittings are clearly marked as per ASTM/ASME standards and shipped with MTCs confirming compliance with chemical, mechanical, and dimensional parameters.

FAQs – Super Duplex Steel Forged Fittings

What are the common sizes available in Super Duplex Forged Fittings?

We provide Super Duplex 1/8′′ to 4′′ Forged Fittings in threaded and socket weld configurations with the ability to customize sizes to meet different project specification.

What is the difference between UNS S32750 and S32760 Forged Pipe Fittings?

Although they are both members of the Super Duplex family, UNS S32760 offers better pitting resistance than UNS S32750 due to its slightly higher molybdenum and tungsten content.

What is the Super Duplex Fittings price per kg?

The price vary based on size, type, and order volume. For the most precise and affordable Super Duplex Fittings Price per kg with complete material test documentation, get in touch with our staff.

Are these fittings compatible with ASME and MSS standards?

Yes, our fittings are certified and compatible worldwide because they meet ASME B16.11 Super Duplex Fittings, MSS SP-79/83/95/97 and DIN/ISO standards.

Can I get these fittings with custom threading or special coatings?

We provide Super Duplex Forged Fittings in Mumbai services that include surface finish, coatings like PTFE or zinc plating and threading (NPT/BSPT) customization.

Nominal Size		Socket Bore Dia	Bore Dia of Fittings			Socket Wall Thickness						Body Wall			Depth of Socket	Center to Bottom of Socket
D N	NPS	B	D			C						Gmin			J min	A
			3000	6000	9000	3000		6000		9000		3000	6000	9000		90° Elbow Tee Cross			45° Elbow
			3000	6000	9000	ave	min	ave	min	ave	min	3000	6000	9000		3000	6000	9000	3000	6000	9000
6	1/8	10.9	6.1	3.2		3.18	3.18	3.96	3.43			2.41	3.15		9.5	11.0	11.0		8	8
8	1/4	14.3	8.5	5.6		3.78	3.30	4.60	4.01			3.02	3.68		9.5	11.0	13.5		8	8
10	3/8	17.7	11.8	8.4		4.01	3.50	5.03	4.37			3.20	4.01		9.5	13.5	15.5		8.0	11.0
15	1/2	21.9	15.0	11	5.6	4.67	4.09	5.97	5.18	9.53	8.18	3.73	4.78	7.47	9.5	15.5	19.0	25.5	11	12.5	15.5
20	3/4	27.3	20.2	14.8	10.3	4.90	4.27	6.96	6.04	9.78	8.56	3.91	5.56	7.82	12.5	19.0	22.5	28.5	13	14	19
25	1	34	25.9	19.9	14.4	5.69	4.98	7.92	6.93	11.38	9.96	4.55	6.35	9.09	12.5	22.5	27.0	32.0	14.0	17.5	20.5
32	1-1/4	42.8	34.3	28.7	22.0	6.07	5.28	7.92	6.93	12.14	10.62	4.85	6.35	9.70	12.5	27.0	32.0	35.0	17.5	20.5	22.5
40	1-1/2	48.9	40.1	33.2	27.2	6.35	5.54	8.92	7.8	12.70	11.12	5.08	7.14	10.15	12.5	32.0	38.0	38.0	20.5	25.5	25.5
50	2	61.2	51.7	42.1	37.4	6.93	6.04	10.92	9.5	13.84	12.12	5.54	8.74	11.07	16.0	38.0	41.0	54.0	25.5	28.5	28.5
65	2-1/2	73.9	61.2			8.76	7.62					7.01			16.0	41.0			28.5
80	3	89.9	76.4			9.52	8.30					7.62			16.0	57.0			32.0
100	4	115.5	100.7			10.69	9.35					8.56			19.0	66.5			41.0

Nominal Size		Center-to-End						Outside Diameter of Band			Wall Thickness			Length of Thread
DN	NPS	A						H			G min			min	mim
		90° Elbows, Tees, Crosses			45° Elbows			H			G min
		2000	3000	6000	2000	3000	6000	2000	3000	6000	2000	3000	6000
6 8 10	1/8 1/4 3/8	21 21 25	21 25 28	25 28 33	17 17 19	17 19 22	19 22 25	22 22 25	22 25 33	25 33 38	3.18 3.18 3.18	3.18 3.30 3.51	6.35 6.60 6.98	6.4 8.1 9.1	6.7 10.2 10.4
15 20 25	1/2 3/4 1	28 33 38	33 38 44	38 44 51	22 25 28	25 28 33	28 33 35	33 38 46	38 46 56	46 56 62	3.18 3.18 3.68	4.09 4.32 4.98	8.15 8.53 9.93	10.9 12.7 14.7	13.6 13.9 17.3
32 40 50	1-1/4 1-1/2 2	44 51 60	51 60 64	60 64 83	33 35 43	35 43 44	43 44 52	56 62 75	62 75 84	84 102	3.89 4.01 4.27	5.28 5.56 7.14	10.59 11.07 12.09	17.0 17.8 19.0	18.0 18.4 19.2
65 80 100	2-1/2 3 4	76 86 106	83 95 114	95 106 114	52 64 79	52 64 79	64 79 79	92 109 146	102 121 152	121 146 152	5.61 5.99 6.55	7.65 8.84 11.18	15.29 16.64 18.67	23.6 25.9 27.7	28.9 30.5 33.0

Minimal Diam.		Outer Dia. For Bevel End	Inner Dia. For End	Elbow		Tee		Reducer	Cap	180° Elbow
DN	NPS			A	B	C	M	H	E	O	K	Roughness
500-600	20-24	+6.4/-4.8	4.8	3.2	3.2	3.2	3.2	4.8	9.6	–	–	–
650-750	26-30
				4.8	4.8	4.8	4.8
800-1200	32-48
1250-1500	50-60	+9.6/-6.4	6.4	9.6	9.6	9.6	9.6	9.6	–
1550-1750	62-70	+12.7/-9.6	9.6	12.7	12.7	–
1800-2000	72-80	+16/-12	12	16	16
15-65	1/2-2 1/2	+1.6/-0.8	0.8	1.6	1.6	1.6	1.6	1.6	3.2	6.4	6.4	0.8
80-100	3-4	1.6	1.6						6.4
125-200	5-8	+2.4/-1.6
250-450	10-18	+4/-3.2	3.2	2.4	2.4	2.4	2.4	2.4		9.6
